| Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3ae for 10GbE SFP+
IEEE 802.1AS PTP for TSN
IEEE 802.1Qbv
IEEE 802.1Qbu
IEEE 802.1Qch
IEEE 802.1CB
IEEE 802.1Qci
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
ITU-T G.8032 for ERPS |
| TSN |
PTP clock synchronization, frame preemption, time-aware shaper TAS, single stream filtering and management PSFP, frame reliability replication and FRER elimination |
| Management |
SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, QoS, LLDP, log information, Syslog server, CFM, port mirroring, DHCPv4 Server, DHCPv4/v6 Relay, file management, port statistics, DDMI |
| Security |
User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, Port Security, NAS, ACL, IPv4/v6 Source Protection, ARP Detection, Radius Server Authentication, TACACS + Server Authentication, DHCPv4/v6 Snooping, Storm Suppression, Port Alarm, Power Supply Alarm, Loop Protection |
| Switch Function |
802.1Q VLAN, Private VLAN, ACL, Port Trunking, Bandwidth Management, Flow Control, Port Isolation, MAC Address Table |
| Unicast / Multicast |
IPMC, MVR, IGMP Snooping, MLD Snooping, MVRP, GVRP |
| Redundancy Technology |
Ring, STP/RSTP/MSTP, ERPS |
| Routing Technique |
RIP, OSPF, OSPFv3 |
| Troubleshooting |
Ping, Traceroute, Link OAM, cable detection |
| Time Management |
NTP Client, Time Zone Configuration, PTP |
| Interface |
Gigabit copper port: 10/100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotunning
Gigabit SFP: 100/1000Base-X self-adaption or forced mode, SFP slot
10Gigabit SFP: 1G/2.5G//10GBase-X self-adaption or forced mode, SFP+ slot
Relay: support 1 relay alarm information output, using 3-pin 5.08mm pitch terminal blocks, and the current load capacity is 1A@30VDC or 0.3A@125VAC
CONSOLE port: CLI command line management port(RS-232), RJ45 |
| Indicator |
Power indicator, alarm indicator, running indicator, interface indicator |
| Switch Property |
Transmission mode: store and forward
MAC address: 32K
Buffer: 32Mbit
Backplane bandwidth: 160G
Switch time delay: <10μs |
| Power Supply |

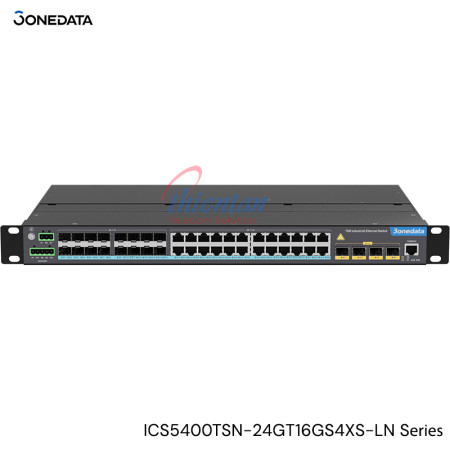

ICS5400TSN-24GT16GS4XS-LN-2LV:
l Power supply range: 24VDC/48VDC (12~55VDC), dual power supply redundancy
l Connection mode: 5-pin 5.08mm pitch terminal blocks
l Connection protection: anti-reverse connection
ICS5400TSN-24GT16GS4XS-LN-2HV:
l Power supply range: 110VAC/220VAC (85~264VAC), dual power supply redundancy
l Connection mode: AC socket with switch
|
| Power Consumption |
ICS5400TSN-24GT16GS4XS-LN-2LV:
l No-load: 19.5W@24VDC
l Full-load: 47.3W@24VDC |
| Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic |
Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting
Dimension (W x H x D): 441.6mm×44.45mm×290mm (lugs are not included) |
| Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
l Contact discharge: ±6kV
l Air discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3
l Power supply: ±2kV
l Signal: ±2kV
IEC 61000-4-5 (Surge), Level 3
l Power supply: differential mode±1kV, common mode±2kV
l Signal: ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
|
| Authentication |
CE, FCC, RoHS |
