Mô tả

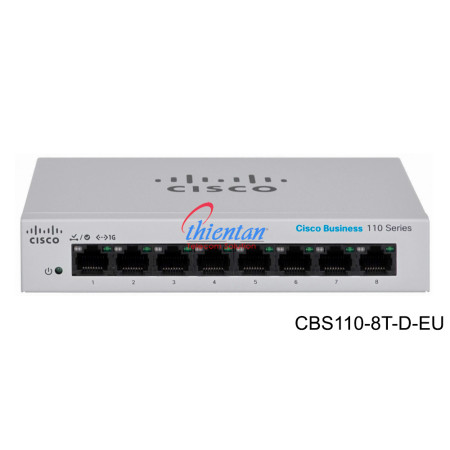

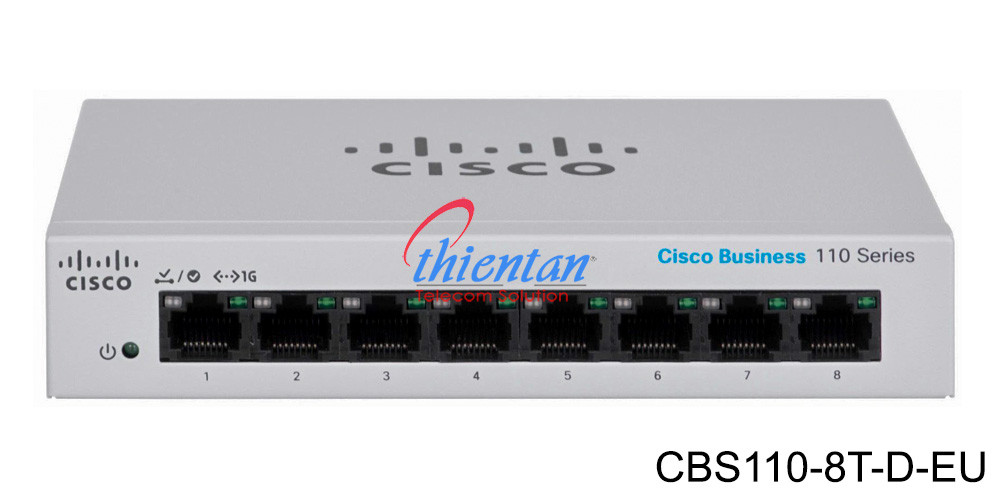

Switch CISCO CBS110-8T-D-EU thuộc dòng switch unmanaged có cách sử dụng vô cùng đơn giản , cài đặt chỉ trong vài phút. Switch Cisco mang lại độ tin cậy với các tính năng nâng cao như Chất lượng dịch vụ (QoS), phát hiện vòng lặp và chuẩn đoán cáp.
Thông số kĩ thuật của switch Cisco CBS110-8T-D-EU
|
Model |
CBS110-8T-D-EU |
|
Performance |
|
|
Capacity in millions of packets per second (mpps) (64-byte packets) |
11.9 mpps |
|
Switching capacity in gigabits per second (Gbps) |
16 Gbps |
|
General |
|
|
Head-of-line (HOL) blocking |
HOL blocking prevention |
|
MAC table |
8K |
|
Jumbo frame |
9216 bytes |
|
Quality of Service (QoS) |
802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
|
Loop detection |
Helps discover loops in the network to avoid broadcast storms |
|
Cable diagnostics |
Quickly identify and troubleshoot network cable faults and/or shorts |
|
Media-dependent interface |
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
|
Hardware |
|
|
Total system ports |
8 Gigabit Ethernet |
|
RJ-45 ports |
8 Gigabit Ethernet |
|
Cabling type |
Category 5e or better |
|
Mounting options |
Desktop, wall-mount |
|
Physical security lock |
Kensington lock slot |
|
Packet Buffer |
2 Mbit |
|
Environmental |
|
|
Unit dimensions (W x D x H) |
160 x 104 x 30 mm |
|
Weight |
0.43 kg |
|
Power |
DC 12V, 1.0A |
|
Power consumption (worst case) |
- System power consumption: |
|
Green (power efficiency) |
Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
|
Compliance/certifications |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|
Operating temperature |
32° to 104°F (0° to 40°C) |
|
Storage temperature |
–4° to 158°F (–20° to 70°C) |
|
Operating humidity |
10% to 90%, relative, noncondensing |
|
Storage humidity |
5% to 90%, relative, noncondensing |
|
Acoustic noise and Mean Time Between Failures (MTBF) |
- Fan (number): Fanless |
