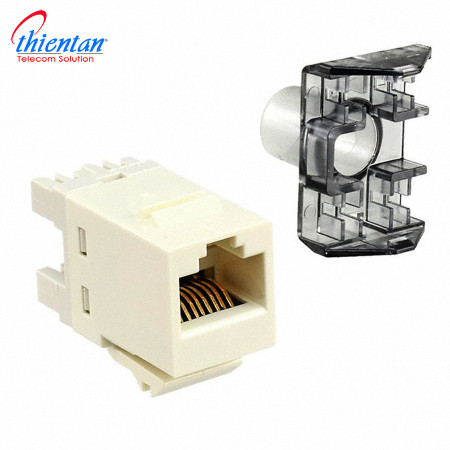

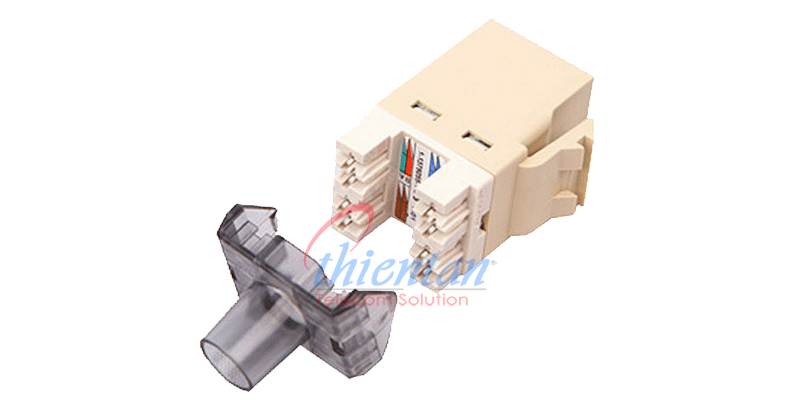

Nhân mạng Cat6 commscope / amp P/N: 1375055-1

ANSI/TIA Category

6

Cable Type

Unshielded

Color

Almond

Conductor Type

Solid | Stranded

Mounting

SL Series faceplates and panels

Mounting Note

Color matches with SL-style Almond Faceplates and Surface Mount Boxes

Outlet Feature

Inverted jack face

Outlet Type

Standard

Panel Cutout, recommended

14.78 x 20.07 mm (0.58 x 0.79 in)

Termination Punchdowns, minimum

200 times

Termination Tool

SL Termination tool

Termination Type

IDC

Transmission Standards

ANSI/TIA-568.2-D | ISO/IEC 11801 Class E

Wiring

T568A | T568B

Height

16.13 mm | 0.635 in

Width

14.48 mm | 0.57 in

Depth

30.48 mm | 1.2 in

Compatible Cable Diameter, maximum

5.8 mm | 0.228 in

Compatible Insulated Conductor Diameter, maximum

1.45 mm | 0.057 in

Contact Plating Thickness

1.27 µm

Panel Thickness, recommended

1.6 mm | 0.063 in

Compatible Conductor Gauge, solid

24–22 AWG

Compatible Conductor Gauge, stranded

26–24 AWG

Contact Resistance Variation, maximum

20 mOhm

Contact Resistance, maximum

100 mOhm

Current Rating at Temperature

1.5 A @ 20 °C | 1.5 A @ 68 °F

Dielectric Withstand Voltage, RMS, conductive surface

1,500 Vac @ 60 Hz

Dielectric Withstand Voltage, RMS, contact-to-contact

1,000 Vac @ 60 Hz

Insulation Resistance, minimum

500 mOhm

Remote Powering

Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Safety Voltage Rating

150 Vac
