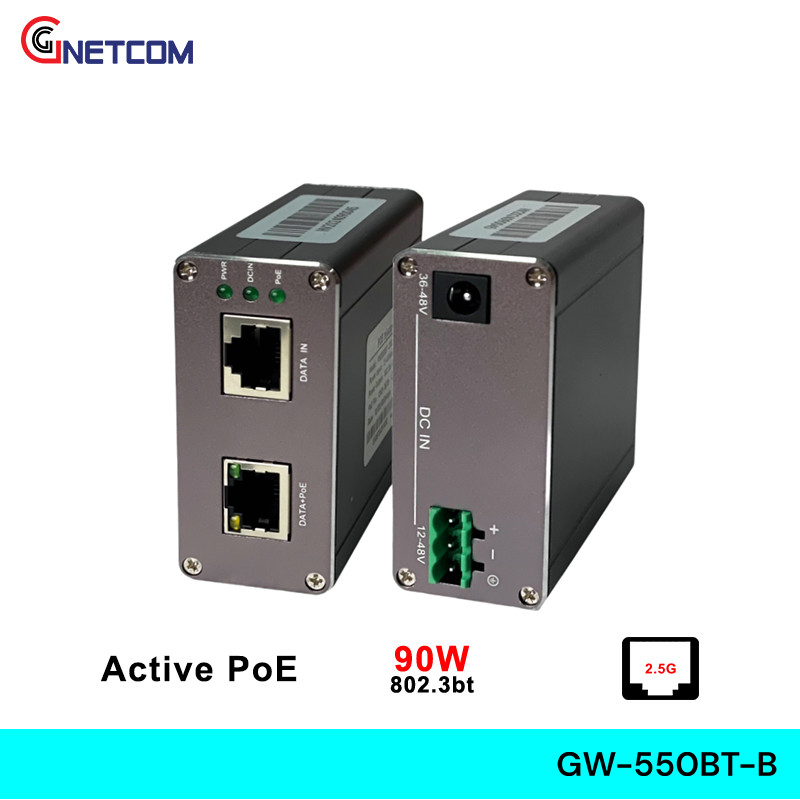

Nguồn poe injector công nghiệp Gnetcom 90W GW-550BT-B

Model No.

GW-550BT-B

Interface Type

1*10/100/1000/2500Mbps RJ45 Data in
1*10/100/1000/2500Mbps RJ45 PoE out
1*DC IN(3P) terminal block
1*DC2.0 power input

DC IN

5.08mm_3P terminal block: 12-48V/10A (Max)
DC2.0: 36-48V/5A (Max)

PoE Standard

IEEE802.3bt Class 8

PoE Power

Max. 90W (IEEE802.3bt)

PoE Pin

PIN: 1278+,3456-

PoE Output

IEEE802.3bt: 54Vdc

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX; IEEE802.3x;
IEEE802.3ab 1000Base-T;
IEEE802.3bz 2.5GBase-T;

LED Indicators

PWR(Power)：power indicator
PoE：PoE on
DIN：DC power input indicator

Transmission Distance

PoE:100/1000/2500Mbps 0~100meters（CAT5e,CAT6）
PoE:10Mbps 0~250meters（CAT5e,CAT6）

Transmission Medium

10BASE-T:Cat3,4,5 or higher grade TP cable
100BASE-TX,1000Base-T:Cat5,5e,6 or higher grade TP cable
2.5GBase-T: Cat5e,6 or higher grade TP cable

Operating Temperature

-40℃~+75℃

Storage Temperature

-40℃~+85℃

Relative Humidity

5%~95% （non-condensing）

Thermal Methods

Fanless design, natural heat dissipation

MTBF

100000h

Protect Garde

IP40

EMC

Power Surge：IEC 61000-4-5  4KV/2KV（8/20us）
Network port Surge：IEC 61000-4-5  4KV/2KV（10/700us）
ESD：IEC 61000-4-2  8K/15K

Product Size

80*70*32mm

Package Size

120*100*59mm

Installation Method

DIN or wall mounted

Weight

0.3KG

Accessory

PoE injector, Din rail bracket (or wall-mount plate)
