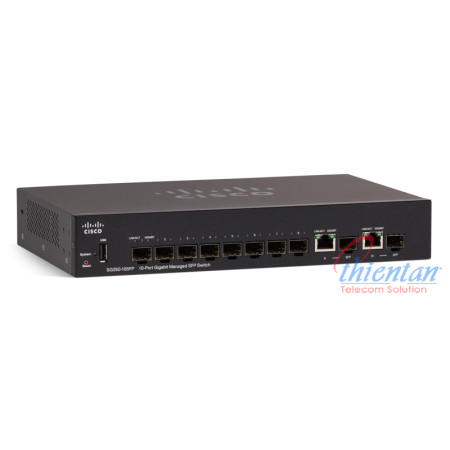

SG350-10SFP-K9-EU switch Cisco 10 port gigabit managed SFP

SG350-10SFP-K9-EU switch Cisco 10 port gigabit managed SFP

Name: SG350-10SFP-K9-EU switch Cisco 10 port gigabit managed SFP
SKU: SG350-10SFP-K9-EU
Availability: InStock

Sản phẩm đã ngừng kinh doanh

Giá: Liên hệ

Tổng quan

Cisco SG350-10 10-Port Gigabit Managed Switch

- P/N: SG350-10SFP-K9-EU
- 8 SFP Gigabit slots
- 2 Gigabit copper/SFP combo.
- Performance: Switching capacity 20 Gbps, Forwarding rate 14.88 mpps wire-speed performance.
- Layer 2: Port grouping up to 8 groups, up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation.
- Layer 3: IPv4 routing Wirespeed routing of IPv4 packets up to 1K static routes and up to 256 IP interfaces, Classless Interdomain Routing (CIDR) Support for CIDR.
- QoS (Quality of Service): Priority levels 8 hardware queues, Scheduling Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service (802.1p/CoS).

Switch SG350-10SFP-K9-EU là switch thương hiệu Cisco có CO CQ đầy đủ. Sản phẩm được phân phối tại Thiên Tân Telecom – đơn vị nhập khẩu và phân phối thiết bị quang, thiết bị mạng, phụ kiện camera cho các công trình trên toàn quốc.

Nội dung

Mô tả
Có thể bạn quan tâm

Mô tả

Switch Cisco SG350-10SFP-K9-EU thuộc dòng sản phẩm Cisco small business 350 là được thiết kế phù hợp với cả 3 lớp mạng với 8 cổng SFP gigabit và 2 cổng uplink combo RJ45/SFP Gigabit

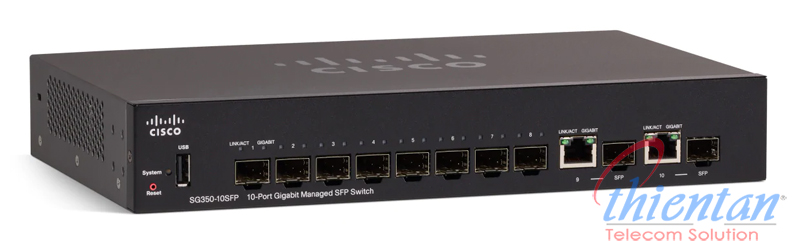

SG350-10SFP-K9-EU

Thông số kĩ thuật của switch Cisco SG350-10SFP-K9-EU

Product Name	8 SFP Gigabit slots, 2 Gigabit copper/SFP combo
Manufacturer Part Number	SG350-10SFP-K9-EU
Product Series	350
Product Model	SG350-10SFP-K9-EU
Hardware
Capacity in Millions of Packets per Second (mpps) (64-byte packets)	14.88
Switching Capacity in Gigabits per Second (Gbps)	20.0
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed, LED power saving option
Flash	256 MB
CPU memory	512 MB
Packet Buffer	1.5 Mb
Environmental
Unit dimensions (W x H x D)	279.4 x 44 x 170 mm
Unit weight	2.08 kg
Power	100-240V 50-60 Hz, external
Power Dedicated to PoE	N/A
Number of Ports That Support PoE	N/A
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	32° to 122°F (0° to 50°C)
Storage temperature	–4° to 158°F (–20° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and MTBF
FAN (Number)	Fanless
Acoustic Noise	N/A
MTBF @40C (hr)	851,827

Switch Cisco small business 350 hỗ trợ các loại module:

SKU	Media	Speed	Maximum Distance
MGBSX1	Multimode fiber	1000 Mbps	500 m
MGBLX1	Single-mode fiber	1000 Mbps	10 km
MGBLH1	Single-mode fiber	1000 Mbps	40 km
MGBT1	UTP cat 5e	1000 Mbps	100 m
GLC-LH-SMD	Single-mode fiber	1000 Mbps	10 km
GLC-BX-U	Single-mode fiber	1000 Mbps	10 km
