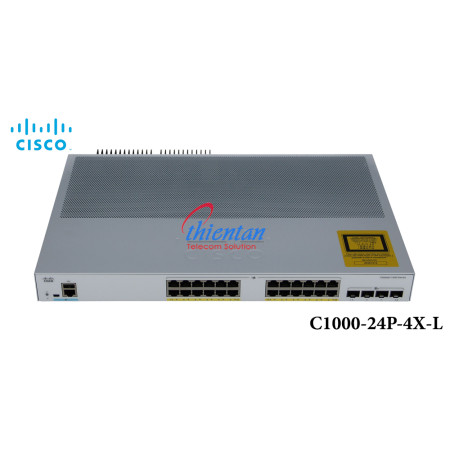

Switch Cisco C1000-24P-4X-L Catalyst 24 port POE+ gigabit, 4x10G SFP+

Memory and processor

CPU

ARM v7 800 MHz

DRAM

512 MB

Flash memory

256 MB

Performance

Forwarding bandwidth

64 Gbps

Switching bandwidth

128 Gbps

Forwarding rate
(64‑byte L3 packets)

95.23 Mpps

MAC addresses

16000

IPv4 unicast direct routes

542

IPv4 unicast indirect routes

256

IPv6 unicast direct routes

414

IPv6 unicast indirect routes

128

IPv4 multicast routes and IGMP groups

1024

IPv6 multicast groups

1024

IPv4/MAC security ACEs

600

IPv6 security ACEs

600

Maximum active VLANs

256

VLAN IDs available

4094

Maximum STP instances

64

Maximum SPAN sessions

4

MTU-L3 packet

9198 bytes

Jumbo Ethernet frame

10,240 bytes

Dying Gasp

Yes

Electrical

Power

Use the supplied AC power cord to connect the AC power connector to an AC power outlet

Voltage (auto ranging)

110 to 220V AC in

Frequency

50 to 60 Hz

Current

0.20A to 0.33A

Power rating (maximum consumption)

0.06 kVA

Safety and compliance

Safety

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1

EMC: Emissions

47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A

EMC: Immunity

EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24

Environmental

Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU

Telco

Common Language Equipment Identifier (CLEI) code

U.S. government certifications

TBD
