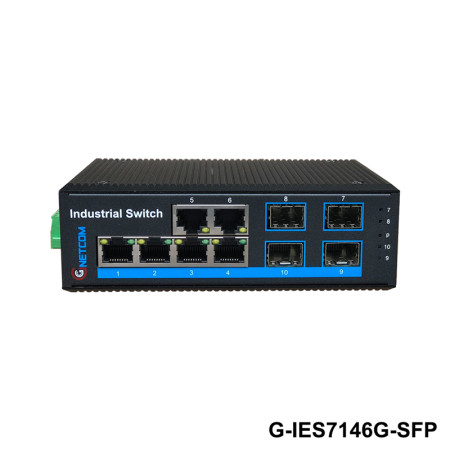

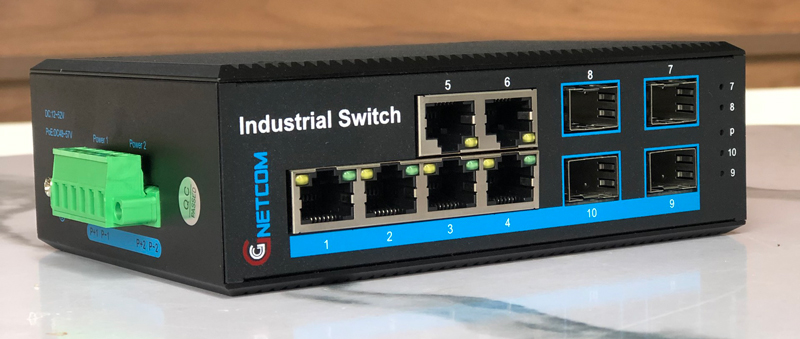

Switch POE chuẩn công nghiệp GNETCOM G-IES7146G-SFP là sản phẩm được thiết kế linh hoạt khi có thể cung cấp 4 cổng POE tiêu chuẩn 802.3af/at đồng thời có 4 cổng SFP giúp bạn kết nối với các thiết bị quang ở xa 1 cách dễ dàng.

G-IES7146G-SFP được thiết kế theo tiêu chuẩn IP40 nhỏ gọn có thể lắp đặt trên DIN-rail. Thiết bị có thể sử dụng nguồn điện với nhiều ngưỡng điện áp khác nhau trên thế giới. Thiết bị sử dụng nguồn điện đầu vào 48-57VDC có phân cực đảo ngược cho tính năng POE.

Thông số kĩ thuật của switch poe công nghiệp 4 cổng POE GNETCOM G-IES7146G-SFP
10/100/1000Base-TX Port
|
6 port RJ-45 auto-MDI / MDI-X
|
PoE Specification
|
PoE Standard: IEEE802.3af/ IEEE802.3at
|
PoE ports:4 port support PoE
|
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
|
PoE port Auto detect AF/AT devices
|
Output Voltage: DC48V
|
Power Pin Assignment:1/2+;3/6-
|
Power Type: End-span( Mid-span optional)
|
1000Base-FX Port
|
4 SFP Slot
|
Fiber Port Type
|
Vary on module
|
Optical Frequency
|
Vary on module
|
Performance Specification
|
Bandwidth: 20Gbps Packet Buffer Memory:2Mbit Packet Forwarding Rate:15Mpps MAC Address Table: 8K
|
Installation
|
DIN rail
|
Maximum Frame Size
|
9000bytes packet size
|
Flow Control
|
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
|
Enclosure
|
IP40 aluminum housing
|
LED Indicator
|
Power: Red
Fiber: Link 2(Green)
Ethernet: Yellow
|

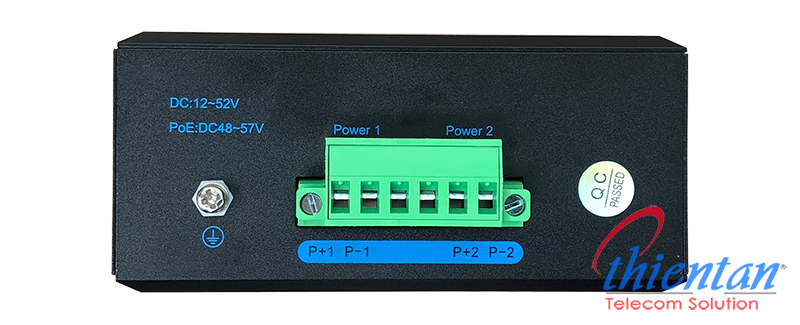

Power Input
|
48 to 57V DC redundant power
|
Power Consumption
|
< 10 watts (excluded PoE)
|
Surge protection
|
CM±4KV, DM±2KV
|
Network Protocols
|
IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;
|
Network cables
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
|
Industry Standard
|
FCC CFR47 Part 15,EN55032 Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
|
MTBF
|
300,000hours
|
Dimensions (W x D x H)
|
143.7 x 103.8 x 47.7 mm
|
Weight
|
Product Weight: 0.72KG
Packing Weight: 0.82KG
|
Working Environment
|
Working temperature: -40~80℃ ;
Storage temperature: -40~80℃
Relative Humidity: 5%~95 %( no condensation)
|

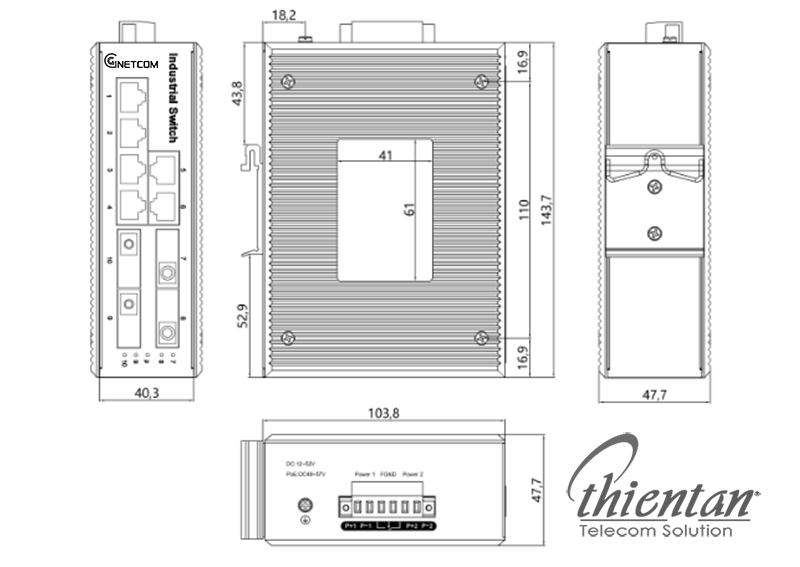

Kích thước switch poe công nghiệp GNETCOM G-IES7146G-SFP
