Mô tả

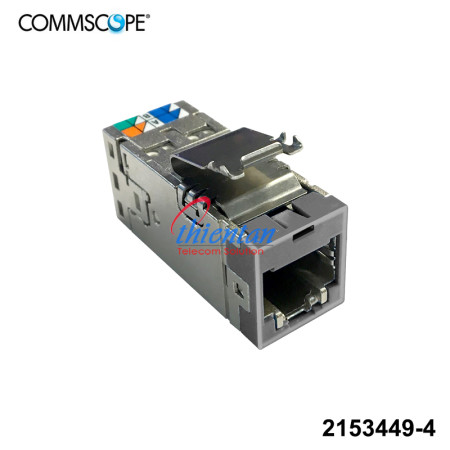

Nhân mạng AMP NETCONNECT chuẩn Cat6A, dạng SLX dạng mỏng nhỏ gọn, tương thích với các loại mặt ổ cắm và patch panel Cat6A. Nhãn đấu nối phía sau cho phép kết nối theo chuẩn đấu nối T568A hoặc T568B.
Thông số kĩ thuật của nhân mạng Cat6A commscope 2153449-4
| Product Classification | |
|
Regional Availability |
Asia | Australia/New Zealand | EMEA | Latin America |
| Portfolio | NETCONNECT® |
| Product Type | Modular jack |
| Product Series | SLX Series |
| General Specifications | |
|
ANSI/TIA Category |
6A |
| Cable Type | Shielded |
| Color | Gray |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting | SL Series faceplates and panels |
| Mounting Note | Color matches with SL-style Gray Faceplates and Surface Mount Boxes |
| Outlet Type | Standard |
| Termination Punchdowns, minimum | 5 times |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA |
| Wiring | T568A | T568B |
| Dimensions | |
|
Panel Cutout, recommended |
14.78 x 20.07 mm (0.58 x 0.79 in) |
| Panel Thickness, recommended | 1.6 mm | 0.063 in |
| Height | 16.13 mm | 0.635 in |
| Width | 14.44 mm | 0.569 in |
| Depth | 36.8 mm | 1.449 in |
| Compatible Cable Diameter, maximum | 8.5 mm | 0.335 in |
| Compatible Insulated Conductor Diameter, maximum | 1.6 mm | 0.063 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 26–22 AWG |
| Compatible Conductor Gauge, stranded | 26–24 AWG |
| Electrical Specifications | |
|
Remote Powering |
Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
| Material Specifications | |
|
Contact Base Material |
Beryllium copper |
| Contact Plating Material | Gold |
| Material Type | Polycarbonate | Zamak |
| Mechanical Specifications | |
|
Plug Insertion Life, minimum |
750 times |
| Environmental Specifications | |
|
Operating Temperature |
-10 °C to +60 °C (+14 °F to +140 °F) |
| Flammability Rating | UL 94 V-0 |
| Packaging and Weights | |
|
Packaging Material |
Standard |
| Packaging quantity | 24 |
| Packaging Type | Bag | Box |
