Patch cord cat6 17ft, dây nhảy cat6 5m commscope

Giá: Liên hệ
More Information
Bảo hành12 tháng

Tổng quan

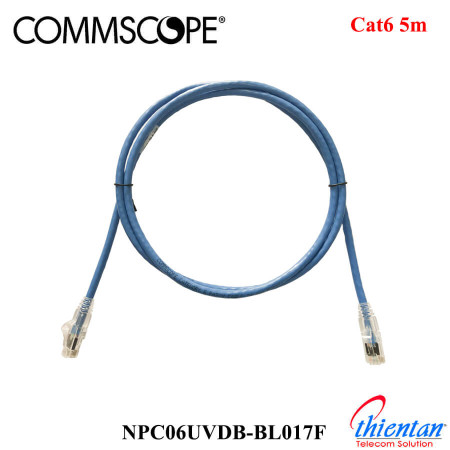

Patch cord Cat6 17ft, dây nhảy Cat6 5m Commscope NPC06UVDB-BL017F

  • NPC RJ45 Patch Cord, category 6, Unshielded, CM (PVC)
  • Chiều dài: 17FT | 5m
  • Màu sắc: Blue
  • P/N: NPC06UVDB-BL017F
  • Thương hiệu Commscope

Dây nhảy Cat6 5m là sản phẩm thương hiệu Commscope – tập đoàn sản xuất và cung cấp các sản phẩm cáp mạng, phụ kiện mạng nổi tiếng trên toàn quốc. Sản phẩm được phân phối tại Giải pháp viễn thông Thiên Tân – đơn vị nhập khẩu và phân phối thiết bị quang, thiết bị mạng, phụ kiện camera cho các công trình trên toàn quốc.

Thông tin sản phẩm

Patch cord Cat6 AMP 5m hay còn gọi là dây nhảy Cat6 Commscope được sử dụng để kết nối cho switch, patch panel, ổ cắm mạng, các thiết bị trong hệ thống mạng.

  • Điện dung: 13.5 pf/ft ở 1Mhz
  • Trở kháng: 100 ohms +/-15%, 1 MHz to 100 MHz
  • Vỏ bọc cách điện: Chất làm chậm phát lửa Polyethylene.
  • Vỏ bọc: PVC, .210 dia. Nominal. Không bọc giáp chống nhiễu.
  • Chụp bảo vệ (Boot): chất đàn hồi  polyolefin.
  • Đầu làm bằng chất polycarbonate trắng trong.
  • Điểm tiếp xúc được phủ 50 microinch vàng phủ đồng ở những điểm chọn lựa, và hơn 100 microinch niken bên dưới.

Thông số kĩ thuật của patch cord Cat6 5m Amp/Commscope:

Product Classification

Regional Availability

Asia | Australia / New Zealand | Latin America

Portfolio

NETCONNECT®

Product Type

Twisted pair patch cord

Product Series

NPC

Ordering Note

Cords < 1 m are valid elements for use in a channel or as an equipment interconnect but due to their limited length are not guaranteed to meet component compliance requirements that were developed to assess the quality of longer cords | Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices

General Specifications

ANSI/TIA Category

6

Cable Type

U/UTP (unshielded)

Conductor Type

Stranded

Interface, Connector A

RJ45 plug

Interface Feature, connector A

Standard

Interface, Connector B

RJ45 plug

Interface Feature, connector B

Standard

Jacket Color

Black | Blue | Green | Orange | Red | Slate | White | Yellow

Pairs, quantity

4

Transmission Standards

IEEE 802.3bt Type 4

Wiring

T568B

Dimensions

Cable Assembly Length Range (m)

1 – 30

Cable Assembly Length Range (ft)

1 – 100

Cable Assembly Length Range (cm)

15 – 999

Cable Assembly Length Range (in)

6 – 999

Diameter Over Jacket

5.97 mm | 0.235 in

Compatible Conductor Gauge, stranded

24 AWG

Material Specifications

Insulation Material

Polyethylene

Material Type

PVC

Mechanical Specifications

Plug Insertion Life, minimum

750 times

Environmental Specifications

Operating Temperature

-20 °C to +60 °C (-4 °F to +140 °F)

Relative Humidity

Up to 93%, non-condensing

Environmental Space

Non-plenum

Flammability Rating

CM

Safety Standard

UL 1863
