Mô tả

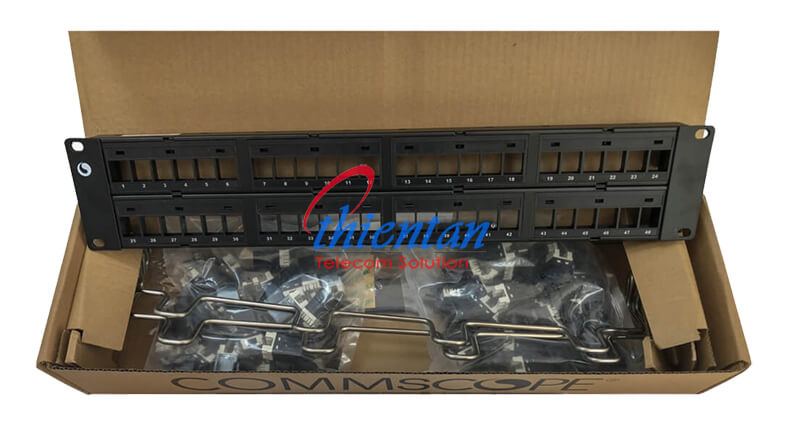

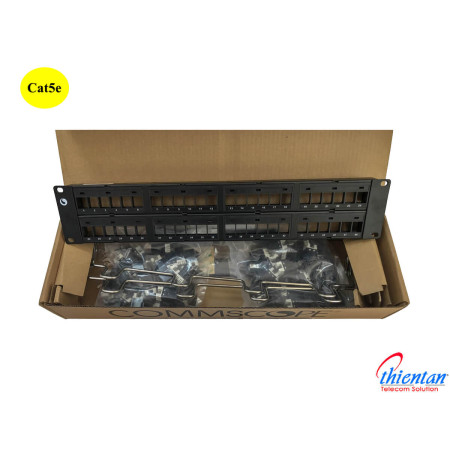

Thành phần chính của patch panel 48 port Cat5e bao gồm 1 thanh quản lý cáp 48 PN 760237041 và nhân mạng cat5e PN 9-1375191-2. Patch panel thương hiệu Commscope là lựa chọn uy tín cho các công trình, dự án trên toàn quốc.

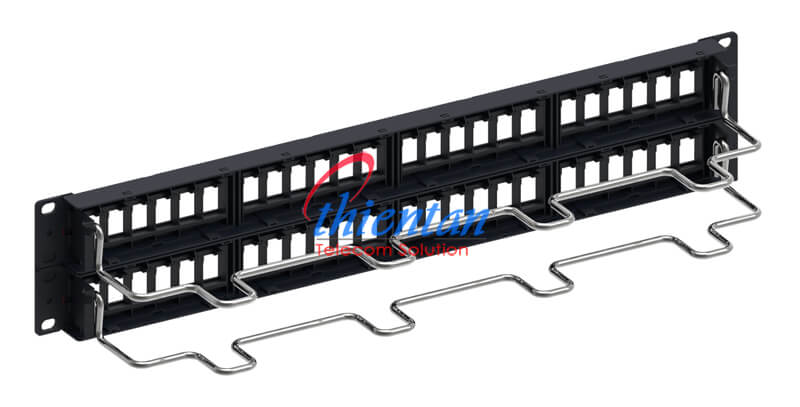

Thanh quản lý cáp 48 port 760237041 CPP-UDDM-SL-2U-48
760237041 CPP-UDDM-SL-2U-48
Thông số kĩ thuật của thanh quản lý 48 port 760237041
|
Cable Type |
Unshielded |
|
Color |
Black |
|
Modules, quantity |
0 |
|
Panel Style |
Straight |
|
Rack Type |
EIA 19 in |
|
Rack Units |
2 |
|
Total Ports, quantity |
48 |
Dimensions
|
Height |
88.9 mm | 3.5 in |
|
Width |
482.6 mm | 19 in |
|
Depth, with cable management |
119.38 mm | 4.7 in |
Material Specifications
|
Material Type |
High-impact, flame retardant, thermoplastic | Powder-coated steel |
Environmental Specifications
|
Operating Temperature |
-10 °C to +60 °C (+14 °F to +140 °F) |
|
Storage Temperature |
-40 °C to +70 °C (-40 °F to +158 °F) |
|
Flammability Rating |
UL 94 V-0 |
|
Safety Standard |
RCM | UL | cUL |
Nhân mạng Cat5e 9-1375191-2 SL 110 Series Modular jack, RJ45, Category 5e, unshielded, without dust cover
|
Product Type |
Modular jack |
|
Product Series |
SL Series |
General Specifications
|
ANSI/TIA Category |
5e |
|
Cable Type |
Unshielded |
|
Color |
Black |
|
Conductor Type |
Solid | Stranded |
|
Integrated Dust Cover Type |
None |
|
Mounting |
SL Series faceplates and panels |
|
Mounting Note |
Color matches with SL-style Black Faceplates and Surface Mount Boxes |
|
Outlet Type |
Standard |
|
Termination Punchdowns, minimum |
200 times |
|
Termination Tool |
SL Termination tool |
|
Termination Type |
IDC |
|
Transmission Standards |
ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D |
|
Wiring |
T568A | T568B |
Dimensions
|
Panel Cutout, recommended |
14.78 x 20.07 mm (0.58 x 0.79 in) |
|
Panel Thickness, recommended |
1.6 mm | 0.063 in |
|
Height |
16.26 mm | 0.64 in |
|
Width |
14.48 mm | 0.57 in |
|
Depth |
30.48 mm | 1.2 in |
|
Compatible Insulated Conductor Diameter, maximum |
1.45 mm | 0.057 in |
|
Contact Plating Thickness |
1.27 µm |
|
Compatible Conductor Gauge, solid |
24–22 AWG |
|
Compatible Conductor Gauge, stranded |
26–24 AWG |
Electrical Specifications
|
Remote Powering |
Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002 |
|
Safety Voltage Rating |
150 Vac |
Material Specifications
|
Contact Base Material |
Beryllium copper |
|
Contact Plating Material |
Gold |
|
Material Type |
Polycarbonate |
Mechanical Specifications
|
Plug Insertion Life, minimum |
750 times |
|
Plug Retention Force, minimum |
89 N | 20.008 lbf |
