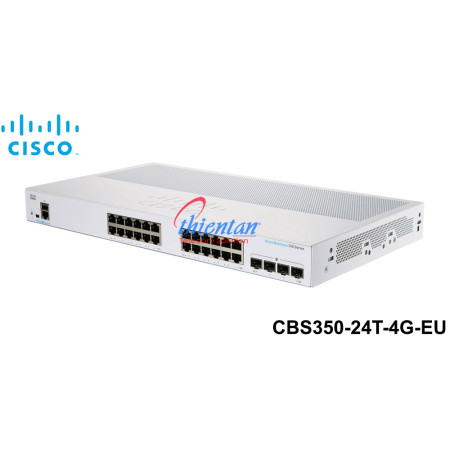

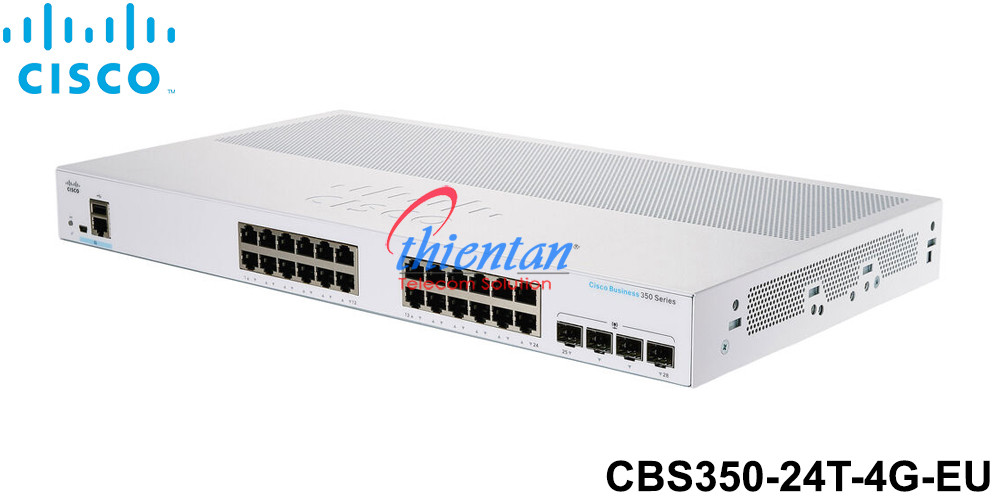

Switch Cisco CBS350-24T-4G-EU 24 port 10/100/1000Mbps

Performance

Capacity in Millions of Packets per Second (mpps) (64-byte packets)

41.66

Switching Capacity in Gigabits per Second (Gbps)

56

General

Jumbo frames

Frame sizes up to 9K bytes. The default MTU is 2K bytes

MAC table

16K addresses

Hardware

Total System Ports

28 Gigabit Ethernet

RJ-45 Ports

24 Gigabit Ethernet

Combo Ports(RJ 45 + Small form-factor pluggable [SFP])

4 SFP

Number of Ports That Support PoE

24

Console port

Cisco Standard mini USB Type-B / RJ45 console port

USB slot

USB Type-A slot on the front panel of the switch for easy file and image management

Buttons

Reset button

Cabling type

Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T

LEDs

System, Link/Act, PoE, Speed

Flash

256 MB

CPU

800 MHz ARM

DRAM

512 MB

Packet buffer

1.5 MB

Environmental

Unit dimensions (W x H x D)

445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in)

Unit weight

2.63 kg (5.80 lb)

Power

100-240V 50-60 Hz, internal, universal

Certification

UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

23° to 122°F (-5° to 50°C)

Storage temperature

-13° to 158°F (-25° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

10% to 90%, relative, noncondensing

Acoustic noise and Mean Time Between Failure (MTBF)

FAN

Fanless

Acoustic Noise

N/A

MTBF at 25°C (hours)

2,026,793

Power consumption

System Power Consumption

110V = 25,91W

220V = 25,63W

Heat Dissipation (BTU/hr)

89,13

Layer 2 Switching

Spanning Tree Protocol

Port grouping/link aggregation

- Up to 8 groups

- Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation​VLAN

- Support for up to 4,094 VLANs simultaneously

- Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN

- Management VLAN

- Private VLAN with promiscuous, isolated, and community port

- Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks

- Guest VLAN, unauthenticated VLAN

- Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication

- CPE VLAN

Voice VLAN

Multicast TV VLAN

VLAN Translation

Q-in-Q

Selective Q-in-Q

Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)

Unidirectional Link Detection (UDLD)

Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2

Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping

IGMP Querier

Head-of-Line (HOL) blocking

Loopback DetectioN

Layer 3

IPv4 routing

- Wirespeed routing of IPv4 packets

- Up to 990 static routes and up to 128 IP interfaces

IPv6 routing

Layer 3 Interface

-Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface

Classless Interdomain Routing (CIDR)

Policy-Based Routing (PBR)

DHCP Server

DHCP relay at Layer 3

User Datagram Protocol (UDP) relay

Security

Secure Shell (SSH) Protocol

Secure Sockets Layer (SSL)

IEEE 802.1X (Authenticator role)

Web-based authentication

STP Bridge Protocol Data Unit (BPDU) Guard

STP Root Guard

STP loopback guard

DHCP snooping

IP Source Guard (IPSG)

Dynamic ARP Inspection (DAI)

IP/MAC/Port Binding (IPMB)

Secure Core Technology (SCT)

Secure Sensitive Data (SSD)

Trustworthy systems

Private VLAN

Layer 2 isolation Private VLAN Edge (PVE) with community VLAN

Port security

RADIUS/TACACS+

RADIUS accounting

Storm control

DoS prevention

Multiple user privilege levels in CLI

ACLs Support for up to 1,024 rules

Management

Web user interface

SNMP

Remote Monitoring (RMON)

IPv4 and IPv6 dual stack

Firmware upgrade

Port mirroring

VLAN mirroring

DHCP (options 12, 66, 67, 82, 129, and 150)

Secure Copy (SCP)

Autoconfiguration with Secure Copy (SCP) file download

Text-editable config files

Smartports

Auto Smartports

Textview CLI

Cloud services

Embedded Probe for Cisco Business Dashboard

Cisco Network Plug and Play (PnP) agent

Localization

Login banner

Other management

SKU

Media

Speed

Maximum Distance

MGBSX1

Multimode fiber

1000 Mbps

500 m

MGBLX1

Single-mode fiber

1000 Mbps

10 km

MGBLH1

Single-mode fiber

1000 Mbps

40 km

MGBT1

UTP cat 5e

1000 Mbps

100 m

GLC-SX-MMD

Multimode fiber

1000 Mbps

550 m

GLC-LH-SMD

Single-mode fiber

1000 Mbps

10 km

GLC-BX-U

Single-mode fiber

1000 Mbps

10 km

GLC-BX-D

Single-mode fiber

1000 Mbps

10 km

GLC-TE

UTP cat 5e

1000 Mbps

100 m
