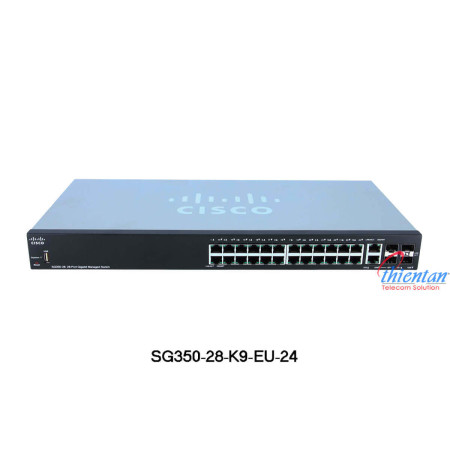

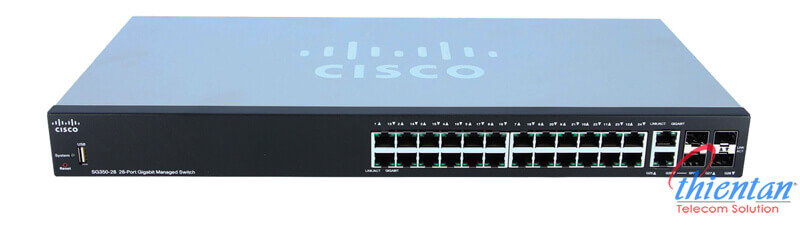

Switch Cisco SG350-28-K9-EU 28 port Gigabit managed layer 3

Dimensions & Weight

Depth:

20.2 cm

Height:

4.45 cm

Weight:

2.75 kg

Width:

44 cm

Environmental Parameters

Humidity Range Operating:

10 - 90% (non-condensing)

Humidity Range Storage:

10 - 90% (non-condensing)

Max Operating Temperature:

40 °C

Max Storage Temperature:

70 °C

Min Operating Temperature:

0 °C

Min Storage Temperature:

-20 °C

Expansion / Connectivity

Interfaces:

24 x 1000Base-T RJ-45 ¦ 2 x 1000Base-T RJ-45/SFP ¦ 2 x 1000Base-T SFP ¦ 1 x console RJ-45 management ¦ 1 x USB management

General

Authentication Method:

Secure Shell (SSH), RADIUS, TACACS+

Capacity:

Active VLANs: 4096

Compliant Standards:

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az

Device Type:

Switch - 28 ports - L3 - Managed

Enclosure Type:

Rack-mountable 1U

Encryption Algorithm:

SSL

Features:

Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, 12MB packet buffer

Flash Memory:

256 MB

Jumbo Frame Support:

9216 bytes

MAC Address Table Size:

16K entries

Performance:

Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 38.69 Mpps

Ports:

24 x 10/100/1000 + 2 x Gigabit SFP + 2 x combo Gigabit SFP

RAM:

512 MB

Remote Management Protocol:

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI

Routing Protocol:

Static IPv4 routing, CIDR

Status Indicators:

Link/activity

Subtype:

Gigabit Ethernet

Miscellaneous

Cables Included:

1 x power cable ¦ 1 x console cable

Compliant Standards:

UL 60950, FCC Part 15 A, CSA 22.2

Localisation:

Europe

MTBF:

367,209 hours

Power

Power Device:

Internal power supply

Voltage Required:

AC 120/230 V (50/60 Hz)
