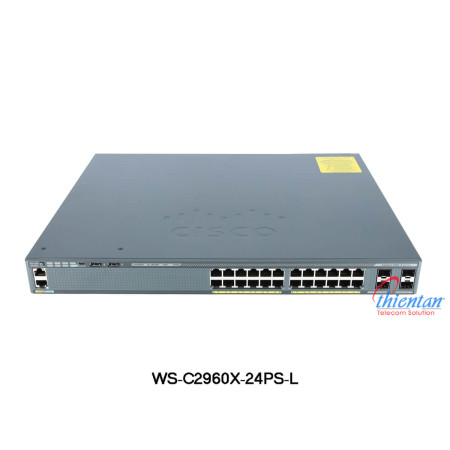

Switch Cisco WS-C2960X-24PS-L 24 port POE 1000Mbps

Sản phẩm đã ngừng kinh doanh
Giá: Liên hệ

Tổng quan

Switch Cisco WS-C2960X-24PS-L là switch thuộc dòng sản phẩm Cisco Catalyst  là sự lựa chọn phù hợp, giải pháp thân thiện nhất với hệ thống mạng doanh nghiệp vừa và nhỏ hiện nay khi vừa được tích hợp nguồn POE lên tới 370W trên toàn bộ 24 cổng Gigabit Ethernet.

  • P/N: WS-C2960X-24PS-L
  • Thương hiệu Cisco
  • Bảo hành 12 tháng
  • CO CQ
  • 24 port POE 1000Mbps
  • 4 port SFP

Sản phẩm được phân phối tại Giải pháp viễn thông Thiên Tân – đơn vị nhập khẩu và phân phối thiết bị quang, thiết bị mạng, phụ kiện camera cho các công trình trên toàn quốc.

Thông tin sản phẩm

Top

WS-C2960X-24PS-L là sự lựa chọn tối ưu, giải pháp thân thiện cho hệ thống mạng doanh nghiệp vừa và nhỏ khi cung cấp 24 cổng kết nối 10/100/1000Mbps và 4 cổng uplink SFP. Bộ chuyển mạch Cisco WS-C2960X-24PS-L được tích hợp tính năng POE với tổng công suất 370W cùng hệ điều hành IOS LAN BASE.

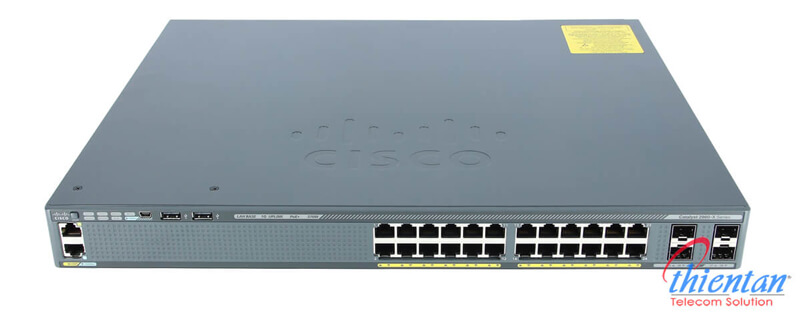

WS-C2960X-24PS-L

Thông số kĩ thuật của switch mạng Cisco WS-C2960X-24PS-L

Product Code

WS-C2960X-24PS-L

Enclosure Type

Rack-mountable - 1U

Feature Set

LAN Base

Uplink Interfaces

4 x 1G SFP

Ports

24 x Ethernet 10/100/1000 Gigabit ports

Available PoE Power

370W

Maximum stacking number

8

Stack bandwidth

80G

Forwarding Bandwidth

108Gbps

Switching Bandwidth

216Gbps

RAM

512MB

Flash Memory

128MB

Dimensions

44.5 cm x 36.8 cm x 4.5 cm

Package Weight

10.65 Kg

Forwarding Performance

71.4Mpps

Maximum active VLANs

1023

MAC Address Table Size

16K (default)

MTBF in hours

324,280

Switch Cisco tuân thủ theo các tiêu chuẩn thông dụng

Compliant Standards

● IEEE 802.1D Spanning Tree Protocol

● IEEE 802.1p CoS Prioritization

● IEEE 802.1Q VLAN

● IEEE 802.1s

● IEEE 802.1w

● IEEE 802.1X

● IEEE 802.1ab (LLDP)

● IEEE 802.3ad

● IEEE 802.3af and IEEE 802.3at

● IEEE 802.3ah (100BASE-X single/multimode fiber only)

● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T

● IEEE 802.3u 100BASE-TX

● IEEE 802.3ab 1000BASE-T

● IEEE 802.3z 1000BASE-X

● RMON I and II standards

● SNMP v1, v2c, and v3

● IEEE 802.3az

● IEEE 802.3ae 10Gigabit Ethernet

System software

IOS LAN BASE

features

●RPS Support

● Jumbo Frames

● VLANS

●Voice Vlan

●VTPv2

●CDPv2

●LLDP

● 802.3ad LACP

● PVST/PVST+

● 802.1W/802.1S

● Port Fast/Uplink Fast

● port CoS Trust and Override

● Scheduling

● Priority Queuing

● Configure CoS Priority Queues

● Weighted Tail Drop

● DSCP transparency

Network security

● SSH, SSL and SCP

● RADIUS and TACACS+

● SNMPv3 crypto

● 802.1x

● 802.1x Accounting / MIB

● 802.1x w/ port security

● 802.1x w/Voice VLAN

● 802.1x Guest VLAN

● 802.1x VLAN assignment

● 802.1x MAC-Auth Bypass

● BPDU/Root Guard

● Port Security

● Private VALN Edge

● Storm Control

● Block unknown unicast and multicast

● IGMP Snooping

● IGMP Filter/Throttle

Management and Troubleshooting

● Auto-MDOX

●TDR

● UDLD

● IP SLA Responder

● layer 2 / IP Traceroute

● SPAN

● RSPAN

● Express Setup

● Device Manager

● Cisco Network Assistant

● Smartports + Advisor

● Troubleshooting Advisor

● Drag-and-drop Cisco IOS Upgrade

● IP Address DHCP

● Autoinstall with saved configuration

● Configuration Replace

● DHCP Auto Image Upgrade

● DHCP Port Based Allocation

● Error Disable MIB

Cấu hình phần cứng của switch chuyển mạch Cisco

Hardware specifications

Flash memory

128 MB

DRAM

512 MB

CPU

APM86392 600 MHz dual core

Console ports

USB (Type B), Ethernet (RJ-45)

Storage interface

USB (Type A) for external flash storage

Network management interface

10/100 Mbps Ethernet (RJ-45)

Liên hệ với chúng tôi qua kênh chat trực tiếp hoặc qua số hotline trên website để được tư vấn và hỗ trợ lựa chọn cho phù hợp với nhu cầu của bạn.

Thiên Tân Telecom – Giải pháp viễn thông chuyên nghiệp
