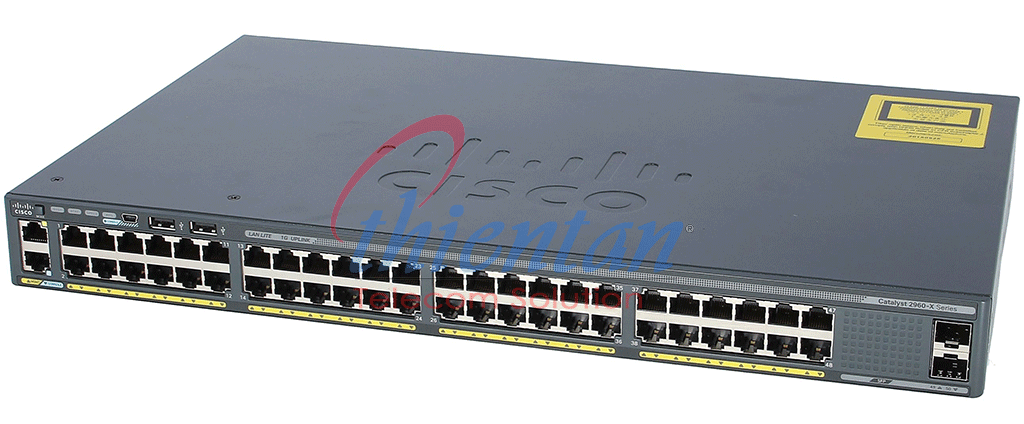

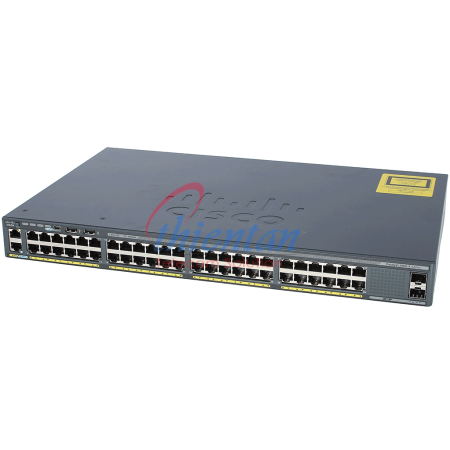

Switch Cisco WS-C2960X-48TS-LL

WS-C2960X-48TS-LL Specification

Enclosure type

Rack-mountable - 1U

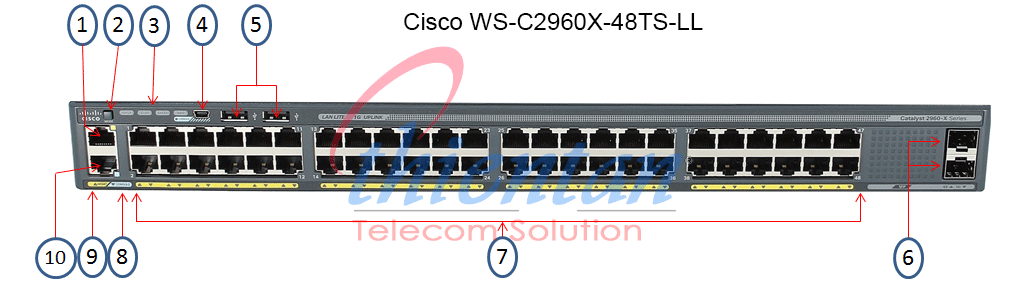

Ports

48 x 10/100/1000 + 2 x 1G SFP Ports

Network management Interface

10/100 Mbps Ethernet (RJ-45)

Available PoE Power

None PoE

Forwarding bandwidth(Gbps)

50Gbps

Maximum stacking number

None

Stack Bandwidth

None

Forwarding Performance

104.2Mpps

Switching bandwidth

100Gbps

Maximum active VLANs

64

MAC Address Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

256 MB

Flash Memory

64 MB

Status Indicators

Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Stacking cable

None

Power Redundancy

Option (PWR-RPS2300)

Voltage range (Auto)

110V-240V

Power Consumption Operational

0.46KVA

Miscellaneous

Width

44.5 cm

Depth

27.9 cm

Height

4.5 cm

Weight

4.0 Kg

Rack Mounting Kit

optional

 MTBF in hours

476,560

Compliant Standards

● IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3af and IEEE 802.3at
● IEEE 802.3ah (100BASE-X single/multimode fiber only)
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
● IEEE 802.3az
● IEEE 802.1ax

System software

System software

IOS LAN Lite

features

●Jumbo Frames

●VLANS

●Voice Vlan

●VTPv2

●CDPv2

●LLDP

●802.3ad LACP

●PVST/PVST+

●802.1W/802.1S

●Port Fast/Uplink Fast

●port CoS Trust and Override

●Scheduling

●Priority Queuing

●Configure CoS Priority Queues

●Weighted Tail Drop

●DSCP transparency

Network security

●SSH, SSL and SCP

●RADIUS and TACACS+

●SNMPv3 crypto

●802.1x

●802.1x Accounting / MIB

●802.1x w/ port security

●802.1x w/Voice VLAN

●802.1x Guest VLAN

●802.1x VLAN assignment

●802.1x MAC-Auth Bypass

●BPDU/Root Guard

●Port Security

●Private VALN Edge

●Storm Control

●Block unknown unicast and multicast

●IGMP Snooping

●IGMP Filter/Throttle

Management and Troubleshooting

●Auto-MDOX

●TDR

●UDLD

●IP SLA Responder

●layer 2 / IP Traceroute

●SPAN

●RSPAN

●Express Setup

●Device Manager

●Cisco Network Assistant

●Smartports + Advisor

●Troubleshooting Advisor

●Drag-and-drop Cisco IOS Upgrade

●IP Address DHCP

●Autoinstall with saved configuration

●Configuration Replace

●DHCP Auto Image Upgrade

●DHCP Port Based Allocation

●Error Disable MIB

Environmental Ranges

Operating temperature up to 1500 m

-5ºC to 45ºC

Operating temperature up to 3000 m

-5ºC to 40ºC

Short-term exception at sea level*

-5ºC to 55ºC

Short-term exception up to 1500 m*

-5ºC to 50ºC

Short-term exception up to 3000 m*

-5ºC to 45ºC

Short-term exception up to 4000 m*

-5ºC to 40ºC

Storage temperature up to 4573 m

-25º to 70ºC

Operating altitude

Up to 3000 Meters

Storage altitude

Up to 4000 Meters

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing
