| Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3ae for 10GbE SFP+
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1X for 802.1X Authentication
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP |
| Management |
SNMP v1/v2c/v3 centralized management devices, RMON, port mirroring, QoS, LLDP, DHCP Server, DHCP Client, file management, log management, port statistics, ARP |
| Security |
User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, HTTPS configuration, SSH configuration |
| Switch Function |
802.1Q VLAN, Static/Dynamic Aggregation, Bandwidth Management, Flow Control, Port Isolation |
| Unicast / Multicast |
Static Multicast, GMRP, IGMP-Snooping |
| Redundancy Technology |
SW-Ring, STP/RSTP/MSTP, ERPS, Loop Detection |
| Troubleshooting |
Ping, Traceroute, Port Loopback |
| Routing Technique |
VRRP, RIP, OSPF, BGP |
| Time Management |
SNTP |
| Interface |
Gigabit SFP slot: 100/1000Base-X SFP
10Gigabit SFP slot: 10GbE SFP+
Combo port: 10/100/1000Base-T(X) or 100/1000Base-X SFP
Console port: CLI command line management port (RS-232), RJ45
Alarm port: 2-pin 5.08mm pitch terminal blocks, support 2 relay alarm outputs, current carrying capacity 5A@30VDC or 10A@125VAC |
| Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
| Switch Property |
Transmission mode: store and forward
MAC address: 16K
Buffer: 16Mbit
Backplane bandwidth: 168G
Switch time delay: <10μs |
| Power Supply |

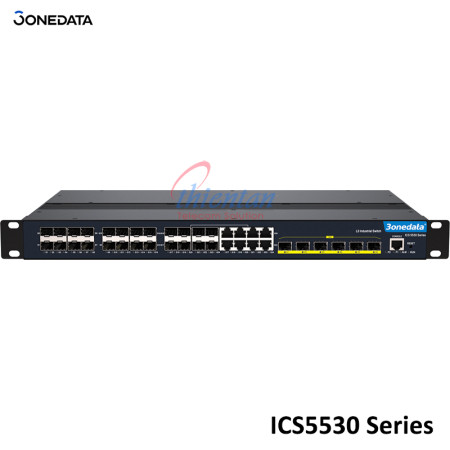

ICS5530-16GS8GC6XS-2P220
l 100~240VAC/DC
l Support 2 AC redundant power supply inputs
l Support 5A overcurrent protection
l Single-phase socket with rocker switch
ICS5530-16GS8GC6XS-2P(18-72VDC)
l 18~72VDC
l Support 2 DC redundant power supply inputs
l Adopt 5-pin 5.08mm pitch terminal blocks (power supply occupies 3 pins)
|
| Power Consumption |
ICS5530-16GS8GC6XS-2P220
l No-load:21.1W@220VAC
l Full-load: 37.8W@220VAC |
| Working Environment: |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic |
Housing: IP40 protection, metal
Installation: 19-inch 1U rack mounting
Weight: 5.248kg
Dimension (W x H x D): 441.6mm×44.45mm×290mm |
| Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
l Air discharge:± 8kV
l Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3
l Power supply: ±2kV
l Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3
l Power supply: differential mode±1kV, common mode±2kV
l Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
|
| Authentication |
CE, FCC, RoHS |
| MTBF |
350000 hours |
