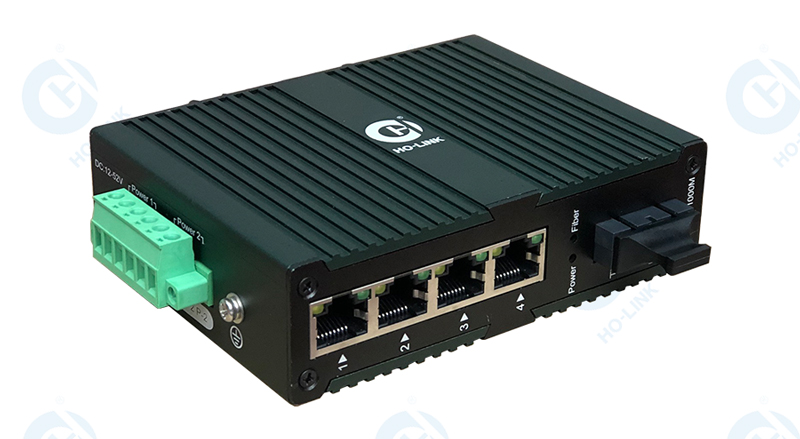

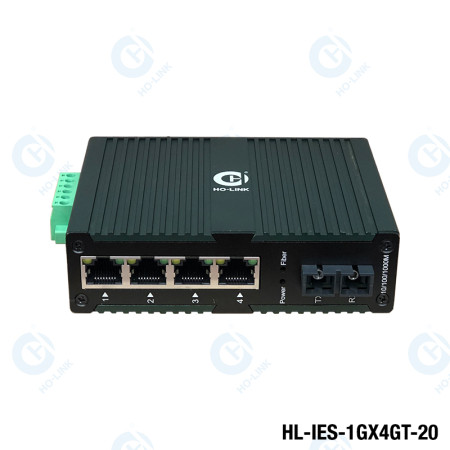

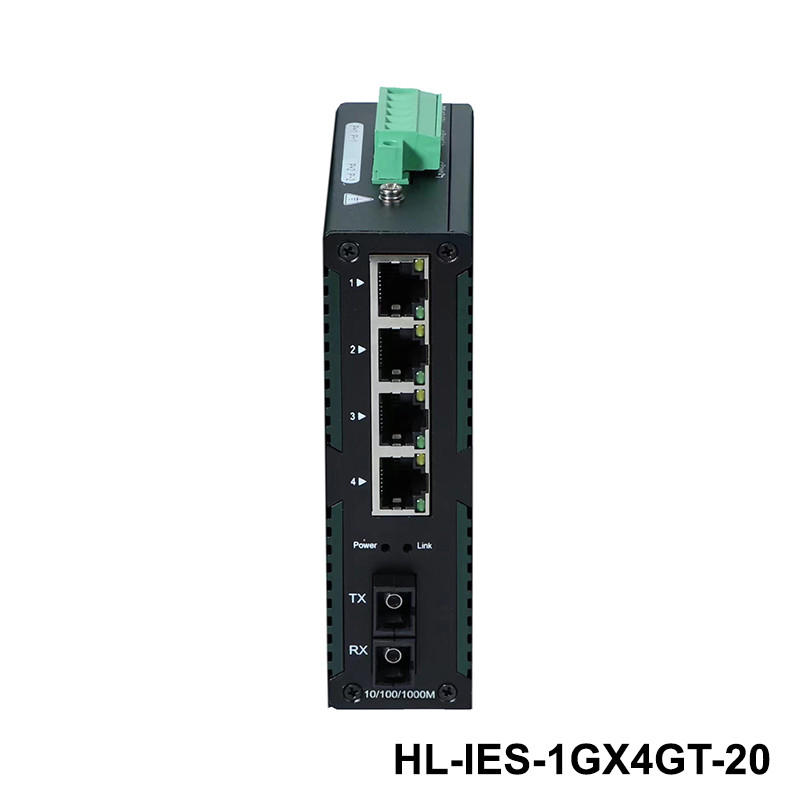

Switch quang chuẩn công nghiệp HO-LINK 10/100/1000Mbps HL-IES-1GX4GT-20

Standards

IEEE802.3 10BaseT

IEEE802.3u 100BaseTX

IEEE 802.3ab for 1000base-T

IEEE 802.3z for 1000base-X

IEEE802.3x flow control and back pressure

IEEE802.1d spanning tree

Copper port

Data Rate:10/100/1000M

Connector:RJ45

Distance: 100m

Fiber port

Data Rate:1.25G

Connector: SC as default, FC/ST/SFP(optional)

Distance:

Multi-mode Fiber 2km

Single-mode Fiber 20km

Wavelength:TX1310nm/RX1310nm

Performance

Processing Type : store and forward

Back Bandwidth:10Gbps

MAC Address Size: 2Kbits

Packet Buffer Size: 1Mbit

Frame: 10Kbytes

Time Delay: <10us

LED indicators

Power: ON=Power connected

1~4: ON=Copper connected

Fiber: ON=Fiber connected

Electrical&Mechanical

Input Voltage:

12~52 VDC,redundant power inputs

Protection:

overload current; reverse polarity

Power Connector: terminal block

Dimension: 174*147*55mm;

Weight: 0.4kg;

Environmental

Operating Temperature:-40℃～85℃

Storage Temperature:-40℃～85℃

Relative Humidity:5%～95（non-condensing）

MTBF: 100000 hours

Available Models

100M Copper Port

100M Fiber Port

Gigabit Copper Port

Gigabit Fiber Port

Gigabit SFP

Power Supply

HL-IES-5TX

5

-

-

-

-

12~52VDC

HL-IES-1FX4TX-20

4

1

-

-

-

HL-IES-1FX4TX-20A

4

1

-

-

-

HL-IES-1FX4TX-20B

4

1

-

-

-

HL-IES-1FX4TX-SFP

4

-

-

-

1

HL-IES-5GT

5

-

-

HL-IES-1GX4GT-20

-

-

4

1

-

HL-IES-1GX4GT-20A

-

-

4

1

-

HL-IES-1GX4GT-20B

-

-

4

1

-

HL-IES-1GX4GT-SFP

-

-

4

-

1
