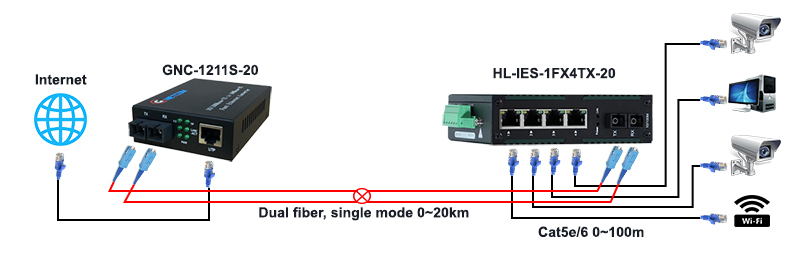

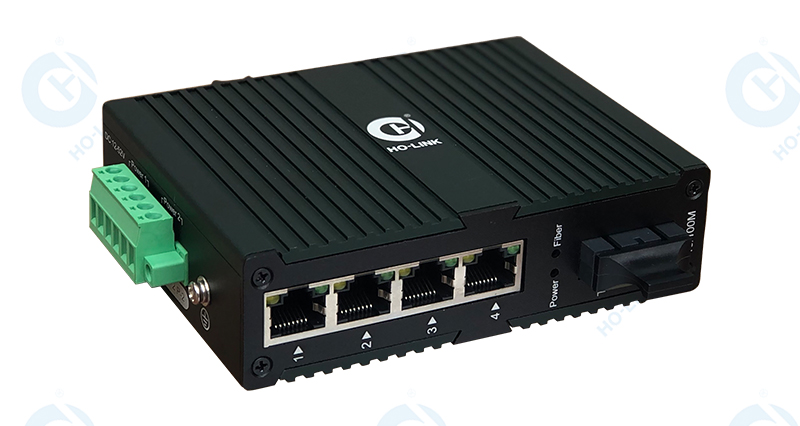

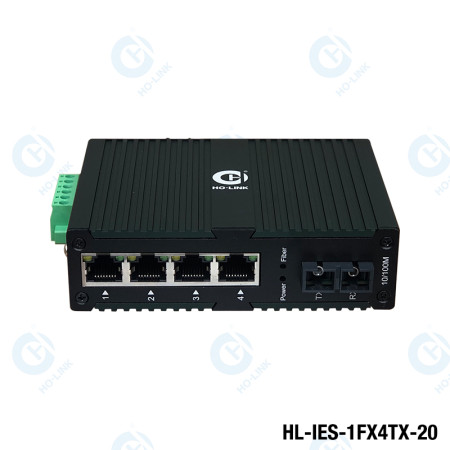

Switch quang chuẩn công nghiệp HO-LINK 10/100Mbps HL-IES-1FX4TX-20

Standards

IEEE802.3 10BaseT

IEEE802.3u 100BaseTX

IEEE802.3x flow control and back pressure

IEEE802.1d spanning tree

Copper port

Data Rate:10/100M

Connector:RJ45

Distance: 100m

Fiber port

Data Rate:155M

Connector: SC as default, FC/ST/SFP(optional)

Distance:

Multi-mode Fiber 2km

Single-mode Fiber 20km

Wavelength:1310nm/1550nm

Performance

Processing Type : store and forward

Back Bandwidth: 1.0Gbps

MAC Address Size: 1024Kbits

Packet Buffer Size: 512Kbit

Frame: 2048bytes

Time Delay: <10us

LED indicators

Power: ON=Power connected

1~4: ON=Copper connected

Fiber: ON=Fiber connected

Electrical&Mechanical

Input Voltage:

12~52 VDC,redundant power inputs

Protection:

overload current; reverse polarity

Power Connector: terminal block

Dimension: 174*147*55mm;

Weight: 0.4kg;

Environmental

Operating Temperature:-40℃～85℃

Storage Temperature:-40℃～85℃

Relative Humidity:5%～95（non-condensing）

MTBF: 100000 hours

100M Copper Port

100M Fiber Port

Gigabit Copper Port

Gigabit Fiber Port

Gigabit SFP

Power Supply

HL-IES-5TX

5

-

-

-

-

12~52VDC

HL-IES-1FX4TX-20

4

1

-

-

-

HL-IES-1FX4TX-20A

4

1

-

-

-

HL-IES-1FX4TX-20B

4

1

-

-

-

HL-IES-1FX4TX-SFP

4

-

-

-

1

HL-IES-5GT

5

-

-

HL-IES-1GX4GT-20

-

-

4

1

-

HL-IES-1GX4GT-20A

-

-

4

1

-

HL-IES-1GX4GT-20B

-

-

4

1

-

HL-IES-1GX4GT-SFP

-

-

4

-

1
