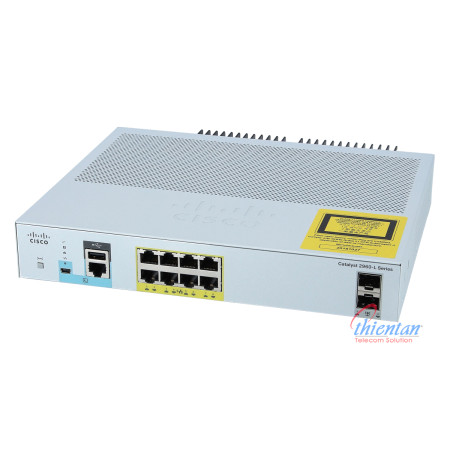

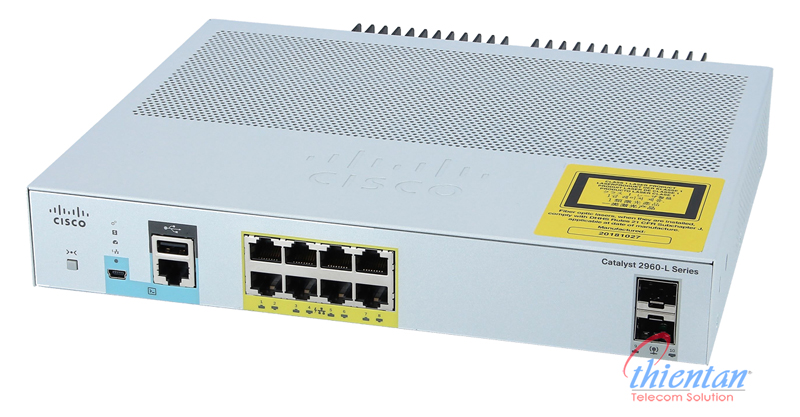

WS-C2960L-8PS-LL 8 port 10/100/1000 Ethernet PoE+ ports, 2 x 1G SFP

Depth:

24 cm

Height:

4.4 cm

Weight:

2.04 kg

Width:

26.8 cm

Humidity Range Operating:

5 - 90%

Humidity Range Storage:

5 - 95%

Max Operating Temperature:

55 °C

Max Storage Temperature:

70 °C

Min Operating Temperature:

-5 °C

Min Storage Temperature:

-25 °C

Interfaces:

8 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 2 x 1000Base-X SFP uplink

Authentication Method:

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Capacity:

MAC addresses: 8000 ¦ VLANs supported: 4094 ¦ Active VLANs: 64 ¦ SPAN bidirectional sessions: 1

Compliant Standards:

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az

Device Type:

Switch - 8 ports - Managed

Enclosure Type:

Desktop, rack-mountable

Features:

Layer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)

Flash Memory:

256 MB

Jumbo Frame Support:

10240 bytes

Performance:

Switching bandwidth: 20 Gbps ¦ Forwarding bandwidth: 10 Gbps

PoE Budget:

67 W

Ports:

8 x 10/100/1000 + 2 x Gigabit SFP (uplink)

Power Over Ethernet (PoE):

PoE+

Processor:

ARM7: 800 MHz

RAM:

512 MB

Remote Management Protocol:

SNMP 3, CLI

Routing Protocol:

IGMP

Status Indicators:

System, status, PoE, link/speed

Subtype:

Gigabit Ethernet

Compliant Standards:

CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386

MTBF:

2,416,133 hours

Power Device:

Internal power supply

Voltage Required:

AC 120/230 V (50 - 60 Hz)

Software Included:

Cisco IOS LAN Lite
