Mô tả

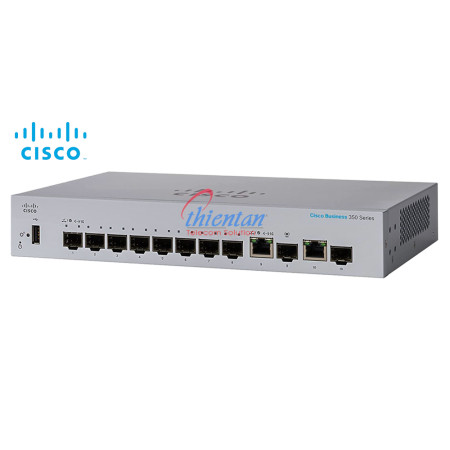

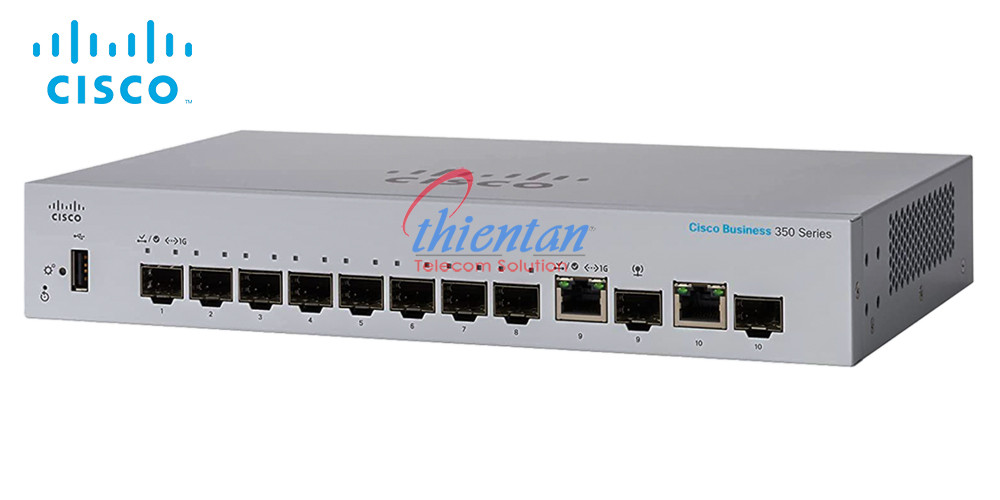

Switch Cisco CBS350-8S-E-2G-EU thuộc dòng cisco business 350 series managed với 8 cổng SFP và 2 cổng uplink combo RJ45/SFP tốc độ gigabit.
Thông số kĩ thuật của switch cisco business CBS350-8S-E-2G-EU
|
Total System Ports |
10 x Gigabit Ethernet |
|
SFP Ports |
8 x Gigabit SFP Slots |
|
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) |
2 x Gigabit Ethernet combo |
|
Capacity in Millions of Packets per Second (64-byte packets) |
14.88 (mpps) |
|
Switching Capacity in Gigabits per Second |
20 Gbps |
|
System Power Consumption |
110V=11.1W |
|
Power Consumption (with PoE) |
N/A |
|
Features |
Layer 2 switching, VLAN support, Spanning Tree Protocol (STP), advanced threat protection, IPv6 first-hop security, quality of service (QoS), sFlow, dynamic routing |
|
Network management |
Cisco Business Dashboard and mobile app; on-device UI, CLI, and SNMP |
|
Heat Dissipation (BTU/hr) |
40.6 |
|
Flash |
256 MB |
|
CPU |
800 MHz ARM |
|
DRAM |
512 MB |
|
Packet Buffer |
1.5 MB |
|
Unit dimensions (W x D x H) |
280 x 170 x 44 mm (11.0 x 6.69 x 1.73 in) |
|
Unit Weight |
1.0 kg (2.20 lb) |
|
Power |
100-240V 50-60 Hz, external |
|
Certification |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|
Operating temperature |
32° to 122°F (0° to 50°C) |
|
Storage temperature |
-13° to 158°F (-25° to 70°C) |
|
Operating humidity |
10% to 90%, relative, noncondensing |
|
Storage humidity |
10% to 90%, relative, noncondensing |
|
FAN (Number) |
Fanless |
|
MTBF at 25°C (hours) |
2,242,229 |
