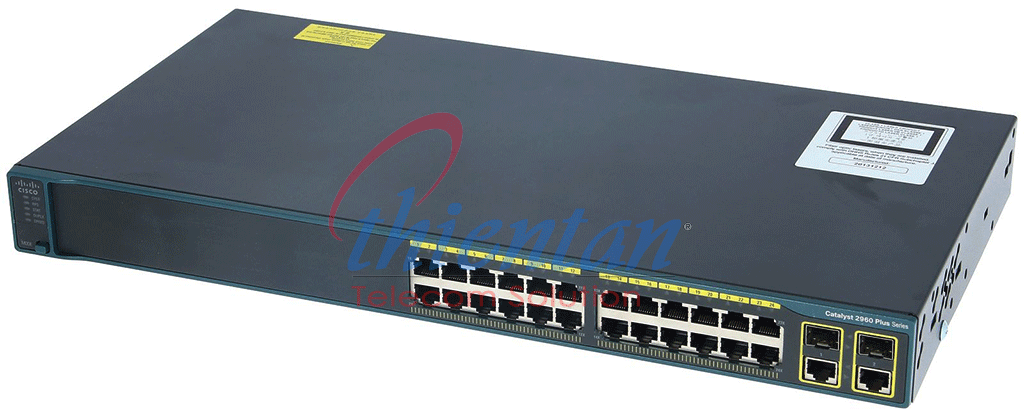

Switch Cisco WS-C2960+24TC-L

Configurations

10/100 Ethernet Interfaces

24

Uplink Interfaces

2 (SFP or 1000BASE-T)

Cisco IOS Software Feature Set

LAN Base

Available PoE Power

None

Hardware

Flash memory

64 MB

DRAM

128 MB

Performance and Scalability

Forwarding bandwidth

16 Gbps

Maximum active VLANs

255

VLAN IDs available

4K

Maximum transmission unit (MTU) - L3 packet

9000 bytes

Jumbo frame - Ethernet frame

9018 bytes

Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second

6.5

Mechanical

Dimensions (H x W x D)

4.4 x 45.0 x 24.2 cm

Weight

3.6 Kg

Environmental Ranges

Operating temperature up to 1500 m

-5º to 45ºC

Operating temperature up to 3000 m

-5º to 40ºC

Short-term exception at sea level*

-5º to 55ºC

Short-term exception up to 1500 m*

-5º to 50ºC

Short-term exception up to 3000 m*

-5º to 45ºC

Short-term exception up to 4000 m*

-5º to 40ºC

Storage temperature up to 4573 m

-25º to 70ºC

Operating altitude

Up to 3,000 Meters

Storage altitude

Up to 4,000 Meters

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

Sound Pressure, dBA

Typical, LpAm: 33

Maximum, LpAD: 36

Sound Power, dbA

Typical, LwA: 43

Maximum, LwAD: 46

MTBF in thousands of hours

667

Connectors and Interfaces

Ethernet Interfaces

• 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
• 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
• 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
• 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Indicator LEDs

• Per-port status: Link integrity, disabled, activity, speed, and full duplex
• System status, Port Status, RPS, link duplex, and link speed

Console

Cisco Catalyst console cables:

• CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

Management and Standards Support

Management

• BRIDGE-MIB
• CISCO-CABLE-DIAG-MIB
• CISCO-CDP-MIB
• CISCO-CLUSTER-MIB
• CISCO-CONFIG-COPY-MIB
• CISCO-CONFIG-MAN-MIB
• CISCO-DHCP-SNOOPING-MIB
• CISCO-ENTITY-VENDORTYPE-OID-MIB
• CISCO-ENVMON-MIB
• CISCO-ERR-DISABLE-MIB
• CISCO-FLASH-MIB
• CISCO-FTP-CLIENT-MIB
• CISCO-IGMP-FILTER-MIB
• CISCO-IMAGE-MIB
• CISCO-IP-STAT-MIB
• CISCO-LAG-MIB
• CISCO-MAC-NOTIFICATION-MIB
• CISCO-MEMORY-POOL-MIB
• CISCO-PAGP-MIB
• CISCO-PING-MIB
• CISCO-POE-EXTENSIONS-MIB
• CISCO-PORT-QOS-MIB
• CISCO-PORT-SECURITY-MIB
• CISCO-PORT-STORM-CONTROL-MIB
• CISCO-PRODUCTS-MIB
• CISCO-PROCESS-MIB
• CISCO-RTTMON-MIB
• CISCO-SMI-MIB
• CISCO-STP-EXTENSIONS-MIB
• CISCO-SYSLOG-MIB
• CISCO-TC-MIB
• CICSO-TCP-MIB
• CISCO-UDLDP-MIB
• CISCO-VLAN-IFTABLE
• RELATIONSHIP-MIB
• CISCO-VLAN-MEMBERSHIP-MIB
• CISCO-VTP-MIB
• ENTITY-MIB
• ETHERLIKE-MIB
• IEEE8021-PAE-MIB
• IEEE8023-LAG-MIB
• IF-MIB
• INET-ADDRESS-MIB
• OLD-CISCO-CHASSIS-MIB
• OLD-CISCO-FLASH-MIB
• OLD-CISCO-INTERFACES-MIB
• OLD-CISCO-IP-MIB
• OLD-CISCO-SYS-MIB
• OLD-CISCO-TCP-MIB
• OLD-CISCO-TS-MIB
• RFC1213-MIB
• RMON-MIB
• RMON2-MIB
• SNMP-FRAMEWORK-MIB
• SNMP-MPD-MIB
• SNMP-NOTIFICATION-MIB
• SNMP-TARGET-MIB
• SNMPv2-MIB
• TCP-MIB
• UDP-MIB
• ePM MIB

Standards

• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1p CoS Prioritization
• IEEE 802.1Q VLAN
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1X
• IEEE 802.1ab (LLDP)
• IEEE 802.3ad
• IEEE 802.3af
• IEEE 802.3ah (100BASE-X single/multimode fiber only)
• IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3z 1000BASE-X
• RMON I and II standards
• SNMP v1, v2c, and v3

RFC compliance

• RFC 768 - UDP
• RFC 783 - TFTP
• RFC 791 - IP
• RFC 792 - ICMP
• RFC 793 - TCP
• RFC 826 - ARP
• RFC 854 - Telnet
• RFC 951 - Bootstrap Protocol (BOOTP)
• RFC 959 - FTP
• RFC 1112 - IP Multicast and IGMP
• RFC 1157 - SNMP v1
• RFC 1166 - IP Addresses
• RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery
• RFC 1305 - NTP
• RFC 1492 - TACACS+
• RFC 1493 - Bridge MIB
• RFC 1542 - BOOTP extensions
• RFC 1643 - Ethernet Interface MIB
• RFC 1757 - RMON
• RFC 1901 - SNMP v2C
• RFC 1902-1907 - SNMP v2
• RFC 1981 - Path MTU Discovery for IPv6
• FRC 2068 - HTTP
• RFC 2131 - DHCP
• RFC 2138 - RADIUS
• RFC 2233 - IF MIB v3
• RFC 2373 - IPv6 Aggregatable Addrs
• RFC 2460 - IPv6
• RFC 2461 - IPv6 Neighbor Discovery
• RFC 2462 - IPv6 Autoconfiguration
• RFC 2463 - ICMP IPv6
• RFC 2474 - Differentiated Services (DiffServ) Precedence
• RFC 2597 - Assured Forwarding
• RFC 2598 - Expedited Forwarding
• RFC 2571 - SNMP Management
• RFC 3046 - DHCP Relay Agent Information Option
• RFC 3376 - IGMP v3
• RFC 3580 - 802.1X RADIUS

Voltage and Power Ratings

Voltage (Autoranging)

100 to 240 VAC

Current (Amperes)

0.4 - 0.2

Frequency

50 to 60Hz

Power Rating (kVA)

0.03

DC Input Voltages (RPS Input)

2A at 12V

Power Consumption

0% traffic: 18.4

10% traffic: 18.3

100% traffic: 18.6

ATIS weighted average: 18.3

Safety and Compliance

Regulatory Compliance

Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC

Safety

UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

IEC 60950-1 Second Edition

AS/NZS 60950-1

EMC - Emissions

47CFR Part 15 (CFR 47) Class A

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

CNS13438 Class A

EMC - Immunity

EN55024

CISPR24

EN300386

KN24

Environmental

Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
