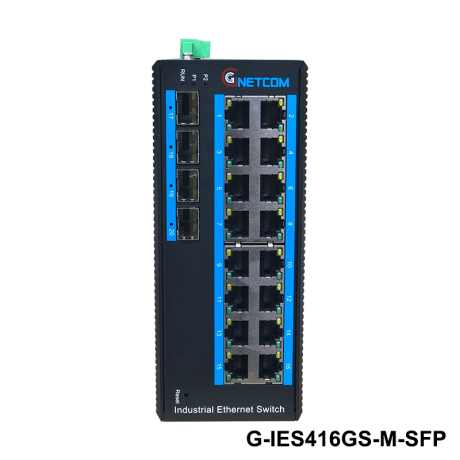

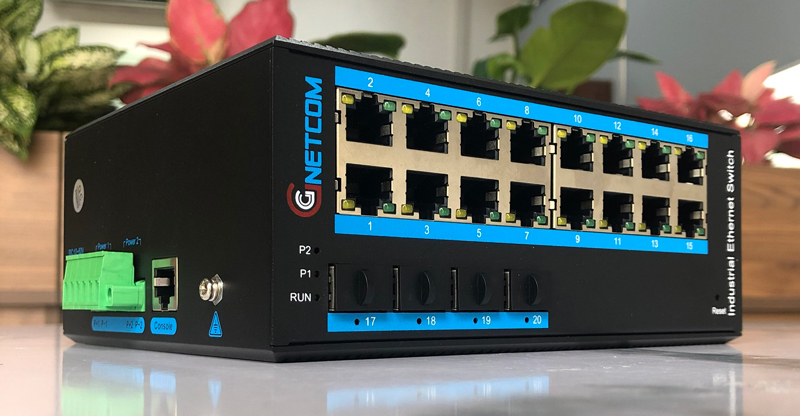

G-IES416GS-M-SFP switch quản lý công nghiệp GNETCOM 16 cổng POE gigabit

Model No.

G-IES416GS-M-SFP

10/100/1000Base-TX Port

16-Port RJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-16 port support PoE(max.)

Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)

PoE port Auto detect af/at devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

1000Base-FX Port

4G SFP Slot

Performance Specification

Bandwidth: 40Gbps
Packet Buffer Memory: 12Mbit
Packet Forwarding Rate: 29.76Mpps
MAC Address Table: 8K

Installation

DIN rail

Maximum Frame Size

10240bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 Aluminum housing

LED Indicator

Power: Red
Fiber: Link 2(Green)
Ethernet: Yellow

Power Input

48 to 57V DC redundant power

Power Consumption

< 10watts

Surge protection

CM±4KV, DM±2KV

Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55032, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

MTBF

300,000hours

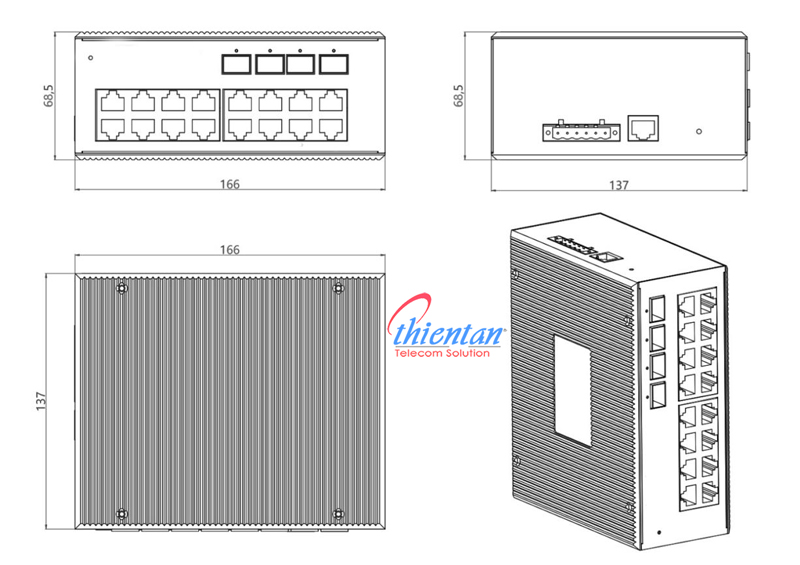

Dimensions (W x D x H)

166×137×68.5mm

Weight

Product Weight: 1.18KG

Packing Weight: 1.3KG

Working Environment

Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Port Features

IEEE 802.3x Flow control

Interface counters

Storm Control

Link Aggregation

Static Aggregation

Dynamic Aggregation, LACP

Supports up to 4 aggregation groups, each group up to 8 ports

Load balancing

MAC Address Table

Static MAC Address

MAC Binding

Mirroring

Port-based

One-to-one Mirroring, Many-to-one Mirroring

Spanning Tree

IEEE802.1d STP

IEEE802.1w RSTP

IEEE802.1s MSTP

ERPS (G.8032)

Single Ring, Sub-Ring, Multi-Ring

Recovery Time < 50ms

LLDP

LLDP

LLDP-MED

Loop Protection

Supported

VLAN

4094 VLAN

Port-based VLAN

GVRP

Protocol VLAN

MAC-based VLAN

IP Subnet-based VLAN

Voice VLAN

Port Isolate

Support

IGMP

Snooping IGMP V1 Snooping

IGMP V2 Snooping

IGMP V3 Snooping

Source Port Check

IGMP Fast Leave

IGMP Filter

MLD Snooping

MLD V1 Snooping

MLD V2 Snooping

Source Port Check

MLD Fast Leave

MLD Filter

Security

ACL

ACL (IP Standard ACL), IPv4/IPv6

MAC extend ACL

IP extend ACL

L2, L3, L4 fields match

log, redirection, mirroring, speed limit

QoS

QoS Class, Remarking

SP, WRR queue scheduling

Ingress port-based rate-limit

Ingress priority-based rate-limit

Egress port-based rate-limit

Egress queue-based rate-limit

Policy-based QoS

Storm Control

8 queues per port

802.1X

Port-based

User management

Password protection

SNMP

SNMP V1/V2c/V3

RMON

Statistics Group

History Group

Alarm Group

Events Group

Web management

HTTP V1.1, HTTPS

Firmware Upgrade

Reversion Upgrade

IPv4/IPv6

Support

CLI

Support

Syslog/Debug

Support

Diagnosis

Ping (IPv4), ping (IPv6)

Trace route(IPv4)

Management

NTP

NTP Client

DHCP

DHCPv4 Client, DHCPv6 Client

DHCP Snooping

DHCP snooping table

Trust Port

Telnet

Telnet Server

TFTP

TFTP Client

SSH

SSH Server
