G-IES816GS-M-SFP switch quản lý công nghiệp GNETCOM 24 cổng gigabit

Model No.

G-IES816GS-M-SFP

1000Base-TX Port

16 port RJ-45 auto-MDI / MDI-X

1000Base-FX Port

8 SFP Slot

Performance Specification

Bandwidth: 48Gbps
Packet Buffer Memory: 12Mbit
Packet Forwarding Rate: 35.71Mpps
MAC Address Table: 8K

Installation

DIN rail

Maximum Frame Size

10240bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 Aluminum housing

LED Indicator

Power: Red
Fiber: Link 2(Green)
Ethernet: Yellow

Power Input

12 to 52V DC redundant power

Power Consumption

< 10W

Surge protection

CM±4KV, DM±2KV

Network Protocols

IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55032, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

MTBF

300,000hours

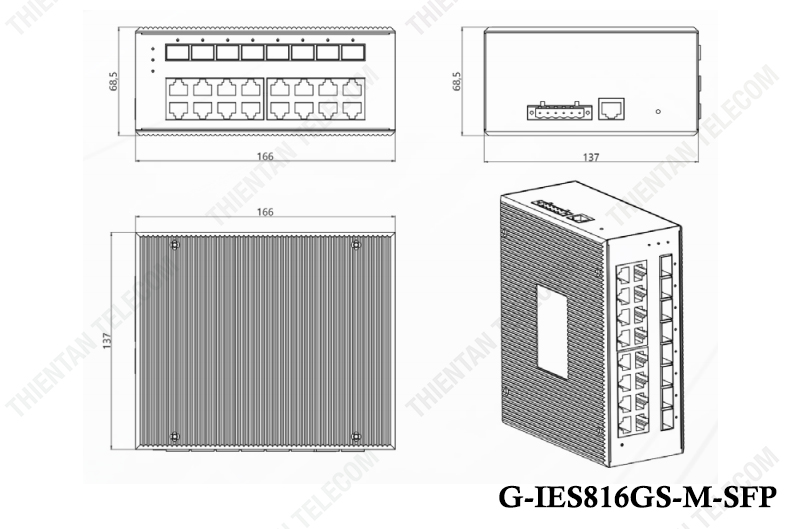

Dimensions (W x D x H)

166*137*68.5mm

Weight

Product Weight: 1.25KG
Packing Weight: 1.4KG

Working Environment

Working temperature: -40～80℃ ;
Storage temperature: -40～80℃
Relative Humidity: 5%~95 %( no condensation)
