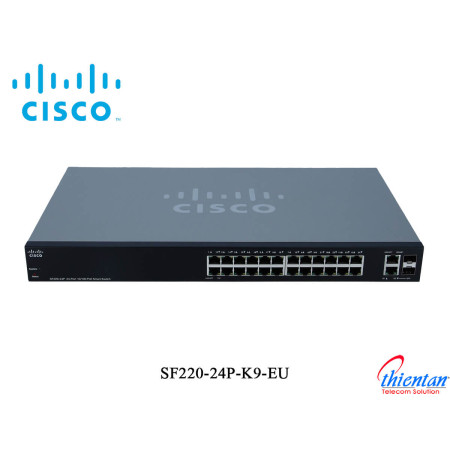

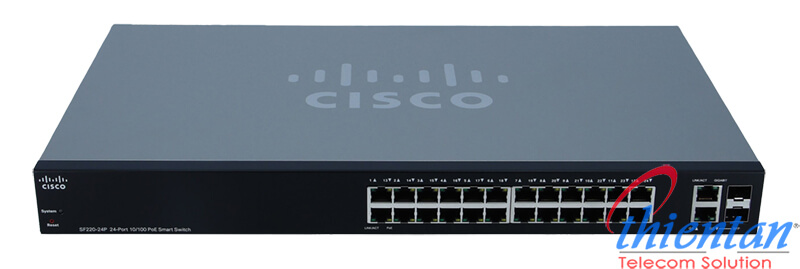

Switch Cisco SF220-24P-K9-EU 24 port POE 10/100Mbps

Hardware

Buttons

Reset button

Cabling type

Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5

Ethernet or better for 1000BASE-T

LEDs

System, Link/Act, Speed

Flash

32 MB

CPU memory

128 MB

Environmental

Dimensions (W x H x D)

440 x 44 x 250 mm

Unit weight

3.64 kg

Power

100V-240V 50-60 Hz, internal

Fan (number)

2 pcs/6300 rpm and Fan speed control

Acoustic noise

<32°C=26.4dB
32°C-40°C=38.6dB
>40°C=41.9dB

MTBF @ 50°C (hours)

445,488

Model

SF220-24P-K9-EU

Performance

Switching capacity and forwarding rate

Capacity in Millions of Packets per Second (mpps) (64-byte packets): 6.55
Switching Capacity in Gigabits per Second (Gbps): 8.8

Jumbo frames

Frame sizes up to 9,216 supported

MAC table

Up to 8,192 MAC addresses

Total system ports

24 Fast Ethernet plus 2 Gigabit Ethernet

RJ-45 ports

24 Fast Ethernet

Uplink ports

2 Gigabit Ethernet combo

Layer 2 Switching

Spanning Tree Protocol (STP)

Standard 802.1d STP support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

Port grouping

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP): Up to 4 groups, Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN

Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). 16 VLANs supported in SG200-08 and SG200-08P
Port-based and 802.1Q tag-based VLANs

Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Internet Group Management Protocol (IGMP) versions 1 and 2 snooping

IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (16 for SG200-08 and SG200-08P)

Head-of-line (HOL) blocking

HOL blocking prevention

Security

IEEE 802.1X (Authenticator role)

802.1X: RADIUS authentication, MD5 hash

Port security

Locks MAC addresses to ports, and limits the number of learned MAC addresses

Storm control

Broadcast, multicast, and unknown unicast

DoS prevention

DoS attack prevention

Quality of Service

Priority levels

4 hardware queues

Scheduling

Strict priority and weighted round-robin (WRR)
Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

Class of service

Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)

Rate limiting

Ingress policer, per VLAN and per port

Power over Ethernet

802.3af PoE or 802.3at PoE+ delivered over any of the RJ-45 network ports within the listed power budgets

Switches support 802.3af, 802.3at, and Cisco pre-standard (legacy) PoE with maximum power of 30 W per port.
This applies to the following PoE-enabled models; the maximum number of ports providing PoE power simultaneously is determined by the total PoE budget for the switch listed as below:
PoE Power Budget: 180 W
Number of Ports That Support PoE: 24

Pre-standard PoE

Support Cisco Pre-Standard PoE

Intelligent PoE power management

Support the granular power negotiation with CDP/LLDP communication with PD devices after IEEE classification

SKU

Media

Speed

Maximum distance

MGBSX1

Multimode fiber

1000 Mbps

550 m

MGBLX1

Single-mode fiber

1000 Mbps

10 km

MGBLH1

Single-mode fiber

1000 Mbps

40 km

MGBBX1

Single-mode fiber

1000 Mbps

40 km

MGBT1

UTP Category 5

1000 Mbps

100 m
