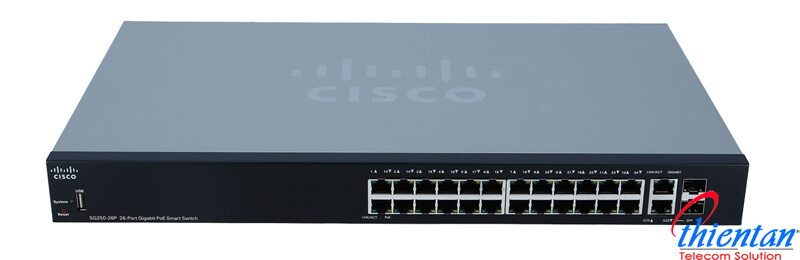

Switch Cisco SG250-26P-K9-EU 26 port gigabit POE 195W

Giao diện web

Tiện ích cấu hình công tắc tích hợp để dễ dàng cấu hình thiết bị dựa trên trình duyệt (HTTP / HTTPS). Hỗ trợ cấu hình, trình hướng dẫn, bảng điều khiển hệ thống, bảo trì hệ thống và giám sát

Chế độ cơ bản và nâng cao cho hiệu quả hoạt động tối đa

Ứng dụng mạng thông minh (SNA)

Một công cụ quản lý và giám sát cấp mạng sáng tạo được nhúng trong Switch mạng Cisco 250. Nó có thể khám phá cấu trúc liên kết mạng, hiển thị trạng thái liên kết, giám sát các sự kiện, áp dụng cấu hình và nâng cấp hình ảnh phần mềm trên nhiều thiết bị chuyển mạch trong mạng

SNMP

SNMP phiên bản 1, 2c và 3 có hỗ trợ traps và SNMP v3 Mô hình bảo mật dựa trên người dùng (USM)

Performance

Capacity in millions of packets per second (mpps) (64-byte packets)

38.69 mpps

Switching capacity in gigabits per second

52 Gbps

Jumbo frames

Frame sizes up to 9K bytes

MAC table

8K addresses

Total system ports

26 Gigabit Ethernet

RJ-45 ports

24 Gigabit Ethernet

Uplink ports

2 Gigabit Ethernet combo

Layer 2 Switching

Spanning Tree Protocol (STP)

Standard 802.1d STP support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

Port grouping

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP): Up to 4 groups, Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN

Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). 16 VLANs supported in SG200-08 and SG200-08P
Port-based and 802.1Q tag-based VLANs

Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Internet Group Management Protocol (IGMP) versions 1 and 2 snooping

IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (16 for SG200-08 and SG200-08P)

Head-of-line (HOL) blocking

HOL blocking prevention

Security

IEEE 802.1X (Authenticator role)

802.1X: RADIUS authentication, MD5 hash

Port security

Locks MAC addresses to ports, and limits the number of learned MAC addresses

Storm control

Broadcast, multicast, and unknown unicast

DoS prevention

DoS attack prevention

Quality of Service

Priority levels

4 hardware queues

Scheduling

Strict priority and weighted round-robin (WRR)
Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

Class of service

Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)

Rate limiting

Ingress policer, per VLAN and per port

Power over Ethernet

802.3af PoE or 802.3at PoE+ delivered over any of the RJ-45 network ports within the listed power budgets

Switches support 802.3af, 802.3at, and Cisco pre-standard (legacy) PoE with maximum power of 30 W per port.
This applies to the following PoE-enabled models; the maximum number of ports providing PoE power simultaneously is determined by the total PoE budget for the switch listed as below:
PoE Power Budget: 195 W
Number of Ports That Support PoE: 24

Pre-standard PoE

Support Cisco Pre-Standard PoE

Intelligent PoE power management

Support the granular power negotiation with CDP/LLDP communication with PD devices after IEEE classification

Dimensions (W x H x D)

440 x 44 x 257 mm

Unit weight

3.81 kg

Power

100 to 240V 50 to 60 Hz, internal, universal

USB slot

USB Type-A slot on the front panel of the switch for easy file and image management

Buttons

Reset button

Cabling type

Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T

Mounting Options

Desktop placement, rackmount

LEDs

System, Link/Act, PoE, Speed

Flash

256 MB

CPU

800 MHz ARM

CPU memory

512 MB

Packet buffer

12 Mb

Power

100 to 240V 50 to 60 Hz, internal, universal

Certification

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

32° to 122°F (0° to 50°C)

Storage temperature

-4° to 158°F (-20° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

10% to 90%, relative, noncondensing

MGBBX1

Single-mode fiber

1000 Mbps

10 km

MGBSX1

Multimode fiber

1000 Mbps

500 m

MGBLH1

Single-mode fiber

1000 Mbps

40 km

MGBLX1

Single-mode fiber

1000 Mbps

10 km

MGBT1

UTP cat 5e

1000 Mbps

100 m

GLC-LH-SMD=

Single-mode fiber

1000 Mbps

10 km

GLC-BX-U=

Single-mode fiber

1000 Mbps

10 km
