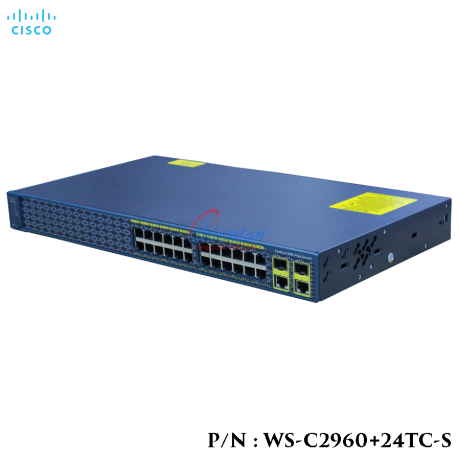

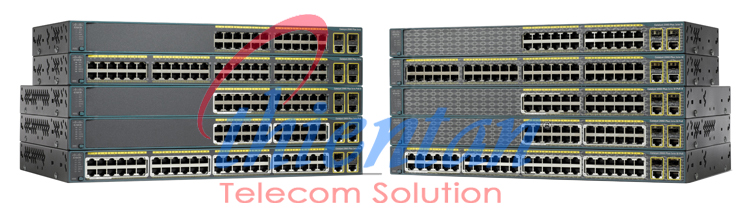

Configurations
|
|
10/100 Ethernet Interfaces
|
24
|
|
Uplink Interfaces
|
2 (SFP or 1000BASE-T)
|
|
Cisco IOS Software Feature Set
|
LAN Lite
|
|
Available PoE Power
|
None
|
|
Hardware
|
|
Flash memory
|
64 MB
|
|
DRAM
|
128 MB
|
|
Performance and Scalability
|
|
Forwarding bandwidth
|
16 Gbps
|
|
Maximum active VLANs
|
64
|
|
VLAN IDs available
|
4K
|
|
Maximum transmission unit (MTU) - L3 packet
|
9000 bytes
|
|
Jumbo frame - Ethernet frame
|
9018 bytes
|
|
Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second
|
6.5
|
|
Mechanical
|
|
Dimensions (H x W x D)
|
4.4 x 45.0 x 24.2 cm
|
|
Weight
|
3.6 Kg
|
|
Environmental Ranges
|
|
Operating temperature up to 1500 m
|
-5º to 45ºC
|
|
Operating temperature up to 3000 m
|
-5º to 40ºC
|
|
Short-term exception at sea level*
|
-5º to 55ºC
|
|
Short-term exception up to 1500 m*
|
-5º to 50ºC
|
|
Short-term exception up to 3000 m*
|
-5º to 45ºC
|
|
Short-term exception up to 4000 m*
|
-5º to 40ºC
|
|
Storage temperature up to 4573 m
|
-25º to 70ºC
|
|
Operating altitude
|
Up to 3,000 Meters
|
|
Storage altitude
|
Up to 4,000 Meters
|
|
Operating relative humidity
|
10% to 95% noncondensing
|
|
Storage relative humidity
|
10% to 95% noncondensing
|
|
Sound Pressure, dBA
|
Typical, LpAm: 33
Maximum, LpAD: 36
|
|
Sound Power, dbA
|
Typical, LwA: 43
Maximum, LwAD: 46
|
|
MTBF in thousands of hours
|
667
|
|
Connectors and Interfaces
|
|
Ethernet Interfaces
|
- 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
- 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
- 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
- 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
|
|
Indicator LEDs
|
- Per-port status: Link integrity, disabled, activity, speed, and full duplex
- System status, Port Status, RPS, link duplex, and link speed
|
|
Console
|
Cisco Catalyst console cables:
- CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
|
|
Management and Standards Support
|
|
Management
|
- BRIDGE-MIB
- CISCO-CABLE-DIAG-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONFIG-COPY-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-DHCP-SNOOPING-MIB
- CISCO-ENTITY-VENDORTYPE-OID-MIB
- CISCO-ENVMON-MIB
- CISCO-ERR-DISABLE-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-IP-STAT-MIB
- CISCO-LAG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-POE-EXTENSIONS-MIB
- CISCO-PORT-QOS-MIB
- CISCO-PORT-SECURITY-MIB
- CISCO-PORT-STORM-CONTROL-MIB
- CISCO-PRODUCTS-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-SMI-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TC-MIB
- CICSO-TCP-MIB
- CISCO-UDLDP-MIB
- CISCO-VLAN-IFTABLE
- RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IEEE8021-PAE-MIB
- IEEE8023-LAG-MIB
- IF-MIB
- INET-ADDRESS-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- RFC1213-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
- ePM MIB
|
|
Standards
|
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab (LLDP)
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3ah (100BASE-X single/multimode fiber only)
- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- RMON I and II standards
- SNMP v1, v2c, and v3
|
|
RFC compliance
|
- RFC 768 - UDP
- RFC 783 - TFTP
- RFC 791 - IP
- RFC 792 - ICMP
- RFC 793 - TCP
- RFC 826 - ARP
- RFC 854 - Telnet
- RFC 951 - Bootstrap Protocol (BOOTP)
- RFC 959 - FTP
- RFC 1112 - IP Multicast and IGMP
- RFC 1157 - SNMP v1
- RFC 1166 - IP Addresses
- RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery
- RFC 1305 - NTP
- RFC 1492 - TACACS+
- RFC 1493 - Bridge MIB
- RFC 1542 - BOOTP extensions
- RFC 1643 - Ethernet Interface MIB
- RFC 1757 - RMON
- RFC 1901 - SNMP v2C
- RFC 1902-1907 - SNMP v2
- RFC 1981 - Path MTU Discovery for IPv6
- FRC 2068 - HTTP
- RFC 2131 - DHCP
- RFC 2138 - RADIUS
- RFC 2233 - IF MIB v3
- RFC 2373 - IPv6 Aggregatable Addrs
- RFC 2460 - IPv6
- RFC 2461 - IPv6 Neighbor Discovery
- RFC 2462 - IPv6 Autoconfiguration
- RFC 2463 - ICMP IPv6
- RFC 2474 - Differentiated Services (DiffServ) Precedence
- RFC 2597 - Assured Forwarding
- RFC 2598 - Expedited Forwarding
- RFC 2571 - SNMP Management
- RFC 3046 - DHCP Relay Agent Information Option
- RFC 3376 - IGMP v3
- RFC 3580 - 802.1X RADIUS
|
|
Voltage and Power Ratings
|
|
Voltage (Autoranging)
|
100 to 240 VAC
|
|
Current (Amperes)
|
0.4 - 0.2
|
|
Frequency
|
50 to 60Hz
|
|
Power Rating (kVA)
|
0.02
|
|
DC Input Voltages (RPS Input)
|
2A at 12V
|
|
Power Consumption
|
0% traffic: 18.6
10% traffic: 18.7
100% traffic: 19.1
ATIS weighted average: 18.8
|
|
Safety and Compliance
|
|
Regulatory Compliance
|
Products should comply with CE Marking per directives 2004/108/EC and 2006/95/EC
|
|
Safety
|
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1
|
|
EMC - Emissions
|
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
|
|
EMC - Immunity
|
EN55024
CISPR24
EN300386
KN24
|
|
Environmental
|
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
|
