Mô tả

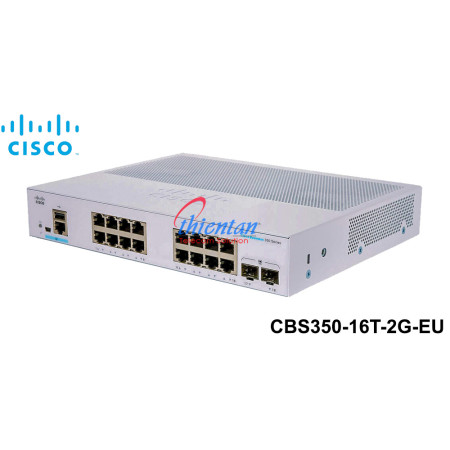

Switch CBS350-16T-2G thuộc dòng Cisco Business 350 được trang bị các tính năng quản lý mạng và bảo mật tiên tiến cần thiết để hỗ trợ các công nghệ không dây, dữ liệu, giọng nói và bảo mật doanh nghiệp. Cùng với đó, switch có thể triển khai và cấu hình 1 cách đơn giản và dễ dàng.
Thông số kĩ thuật của switch Cisco CBS350-16T-2G-EU
|
Performance |
|
|
Capacity in Millions of Packets per Second (mpps) (64-byte packets) |
26.78mpps |
|
Switching Capacity |
36.0Gbps |
|
General |
|
|
Jumbo frames |
Frame sizes up to 9K bytes. The default MTU is 2K bytes |
|
MAC table |
16K addresses |
|
Buttons |
Reset button |
|
Cabling type |
Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
|
LEDs |
System, Link/Act, Speed |
|
Flash |
256 MB |
|
CPU |
800MHz ARM |
|
DRAM |
512 MB |
|
Packet buffer |
1.5 MB |
|
Ports |
|
|
Total System Ports |
18 x Gigabit Ethernet |
|
RJ-45 Ports |
16 x Gigabit Ethernet |
|
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) |
2 x SFP |
|
Console port |
Cisco standard mini USB Type-B/RJ45 console port |
|
USB slot |
USB Type-A slot on the front panel of the switch for easy file and image management |
|
Discovery |
|
|
Bonjour |
The switch advertises itself using the Bonjour protocol |
|
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP‑MED extensions |
LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones |
|
Cisco Discovery Protocol |
The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via Cisco Discovery Protocol |
|
Power consumption (worst case) |
|
|
System Power Consumption |
110V=18.63W |
|
220V=18.37W |
|
|
Heat Dissipation (BTU/hr) |
64.46 |
|
Environmental |
|
|
Unit dimensions (W x D x H) |
268 x 272 x 44 mm |
|
Unit weight |
1.78 kg |
|
Power |
100-240V, 50-60 Hz, internal, universal |
|
Certification |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|
Operating temperature |
-5° to 50°C |
|
Storage temperature |
-25° to 70°C |
|
Operating humidity |
10% to 90%, relative, noncondensing |
|
Storage humidity |
10% to 90%, relative, noncondensing |
|
Acoustic noise and Mean Time Between Failure (MTBF) |
|
|
FAN (Number) |
Fanless |
|
MTBF at 25°C (hours) |
2,165,105 |
Các dòng module SFP hỗ trợ cho switch Cisco Business 350
|
SKU |
Media |
Speed |
Maximum Distance |
|
|
MGBSX1 |
Multimode fiber |
1000 Mbps |
500 m |
|
|
MGBLX1 |
Single-mode fiber |
1000 Mbps |
10 km |
|
|
MGBLH1 |
Single-mode fiber |
1000 Mbps |
40 km |
|
|
MGBT1 |
UTP cat 5e |
1000 Mbps |
100 m |
|
|
GLC-SX-MMD |
Multimode fiber |
1000 Mbps |
550 m |
|
|
GLC-LH-SMD |
Single-mode fiber |
1000 Mbps |
10 km |
|
|
GLC-BX-U |
Single-mode fiber |
1000 Mbps |
10 km |
|
|
GLC-BX-D |
Single-mode fiber |
1000 Mbps |
10 km |
|
|
GLC-TE |
UTP cat 5e |
1000 Mbps |
100 m |
|
