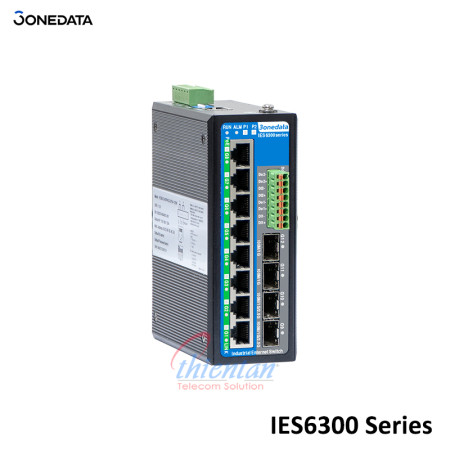

| Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
ITU-T G.8032 for ERPS
IEEE 802.1Q for VLAN
IEEE 802.1p for CoS
IEEE 802.1AB for LLDP
IEEE 802.3ad for LACP
IEEE 802.3af for PoE
IEEE 802.3at for PoE+ |
| Management |
SNMP v1/v2c/v3 Centralized Management of Equipment, QoS, PoE, DHCP Server, DHCP Snooping, DHCP Relay, Static MAC Address, LLDP, Storm Suppression, User Password, Login Method, File Management, Log Management, Port Statistics |
| Security |
User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, DC Power Supply Alarm, IO Alarm, Loop Protection |
| Switch Function |
802.1Q VLAN, Static Aggregation, LACP |
| Unicast / Multicast |
IGMP Snooping, Unicast MAC |
| Redundancy Technology |
Ring, STP/RSTP/MSTP, ERPS |
| Troubleshooting |
Ping, Cable Detection, DDMI, Port Mirroring |
| Time Management |
NTP, Time Zone Configuration |
| PoE (optional) |
The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface |
Gigabit Copper Port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE
Gigabit SFP Slot : 100/1000Base-X self-adaption or forced mode, SFP slot
2.5G SFP Slot: 100/1000/2.5GBase-X self-adaption or forced mode
SFP slot
I/O port (optional): Support 2 inputs and 2 outputs, 8-pin 3.81mm pitch terminal blocks, support dry contact input, relay-type output
Console port: CLI command line management port(RS-232), RJ45
Alarm Port: 6-pin 5.08mm pitch terminal blocks, relay occupies 2 pins and 1 relay alarm information output is supported, the current load capability is 1A@30VDC or 0.3A@125VAC
|
| Indicator |
Running indicator, alarm indicator, power supply indicator, interface indicator, PoE indicator (optional), I/O output indicator (optional), I/O input indicator (optional) |
| Switch Property |
Transmission mode: store and forward
MAC address: 8K
Packet buffer size: 4Mbit
Backplane bandwidth: 30G
Switch time delay: <10μs |
| Power Supply |
IES6300-8GT2GS2HS-2P48,
IES6300-8GT2HS-2P48,
IES6300-8GT2GS2HS-2DI2DO-2P48:
l Voltage input: 12~48VDC
l Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
l Power supply quantity: dual power supply redundancy backup
l Connection protection: non-polarity
l Overcurrent protection: 3A
IES6300-8GP2GS2HS-2P24-120W,
IES6300-8GP2HS-2P24-120W,
IES6300-8GP2GS2HS-2DI2DO-2P24-120W:
l Power supply input: 24VDC
l Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
l Power supply quantity: dual power supply redundancy backup
l Connection protection: anti-reverse connection
l Overcurrent protection: 12A
IES6300-8GP2GS2HS-2P48-240W,
IES6300-8GP2HS-2P48-240W,
IES6300-8GP2GS2HS-2DI2DO-2P48-240W:
l Power input: 48VDC
l Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
l Power supply quantity: dual power supply redundancy backup
l Connection protection: anti-reverse connection
l Overcurrent protection: 5A
IES6300-8GT2GS2HS-P220,
IES6300-8GT2HS-P220:
l Power input: 220VAC/DC
l Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)
|
| Power Consumption |
IES6300-8GT2GS2HS-2P48, IES6300-8GT2GS2HS-2DI2DO-2P48:
No-load: ≤ 5.76W@48VDC
Full-load: ≤12W@48VDC
IES6300-8GP2GS2HS-2P48-240W, IES6300-8GP2GS2HS-2P24-120W, IES6300-8GP2GS2HS-2DI2DO-2P48-240W:
No-load: ≤ 5.76W@48VDC
Full-load: ≤ 132W@24VDC (with 120W PoE load)
≤ 252W@48VDC (with 240W PoE Load)
|
| Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic |
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting
Weight: ≤ 0.78kg
Dimension (W x H x D): 53mm×138mm×110mm |
| Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
IEC 61000-4-5 (Surge), Level 3
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
| Authentication |
CE, FCC, RoHS |
